Excellent Product highly recommend it!
I use audio alerts in my advanced projects, and this module went beyond what I expected. I highly recommend it!
Robocraze
Active Buzzer Module
Active Buzzer Module
Regular price
Rs. 28
Regular price
Rs. 34
Sale price
Rs. 28
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 52 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- A 5V Active Alarm Buzzer Module for Arduino is an audio signaling device, which may be mechanical, electromechanical, or piezoelectric.
- VCC external 3.3V~5V voltage (can be directly connected to the 5V microcontroller and 3.3V microcontroller)
- Programmable, easy to control- SCM can let a high-low sound- while passive buzzer did not.
- An active buzzer with a concussion internal source- so long as it will be called an energized
Active Buzzer Module
An Active Buzzer Alarm Module for Arduino is an audio signaling device, which may be mechanical, electromechanical, or piezoelectric. Just like what you are viewing now, it is a 3.3V-5V DC Electronic Part Active Buzzer Module. Using top-quality material, it is durable in use.
An 5V active buzzer rings out as long as it is electrified. Compared with a passive buzzer, it is a bit expensive but easier to control. Typical uses of buzzers include alarm devices, timers, and confirmation of user input such as a mouse click or keystroke.

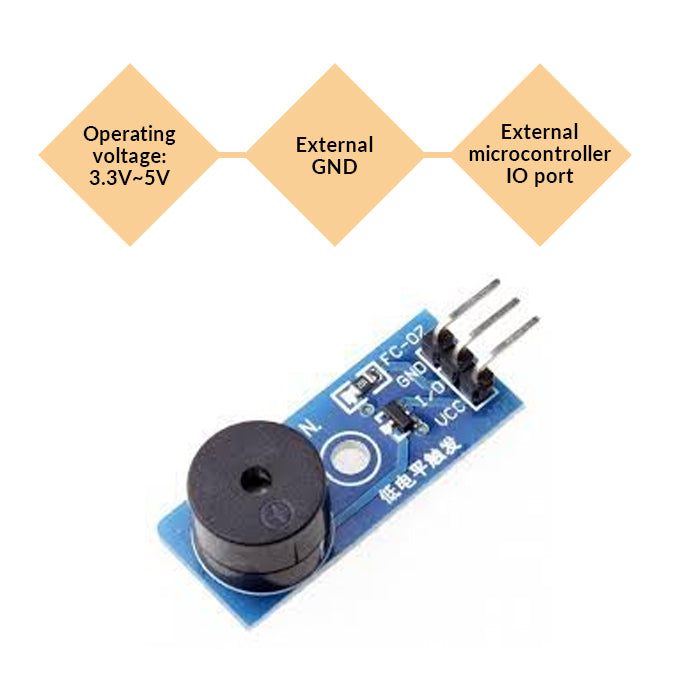

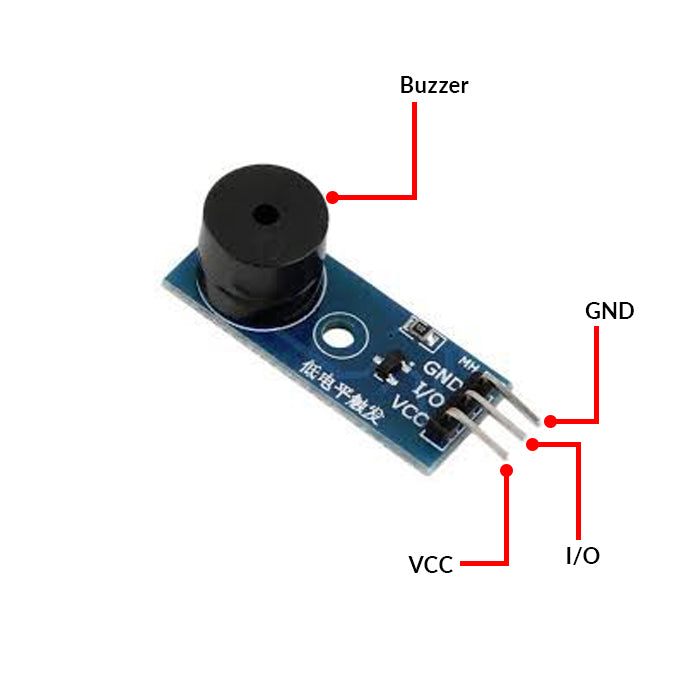

Module Interface Specification (3-wire)
+ External 3.3V-5V voltage (can be directly connected with the 5v and 3.3v MCU MCU)
– External GND out external microcontroller IO port
+ External 3.3V-5V voltage (can be directly connected with the 5v and 3.3v MCU MCU)
– External GND out external microcontroller IO port
Applications:
- The 5V buzzer can be used in making Fire Alarm using Arduino
- Security System
- Audio signaling device
- Alarm
- Timers
Package Includes:
- 1 x Active Buzzer Module
Specifications:
| Operating voltage | 3.3V-5V |
| Dimensions | 34.28 x 13.29 x 11.5 |
| Frequency | 2500Hz |
| Weight | 7 gm. |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the Active buzzer module?
- When the signal level is high, the Active Buzzer module emits a single-tone sound. Use the Passive Buzzer module to create various tones. A piezoelectric buzzer with an integrated oscillator makes up the Active Buzzer module. It generates a sound of approximately 2.5 kHz when the signal is high.
2. How does the buzzer module work?
- It's simple, tone(buzzer, 1000) sends a 1KHz sound signal to pin 9, delay(1000) pauses the program for one second and noTone(buzzer) stops the signal sound. The loop() routine will repeat this process, emitting a short beeping sound each time.
3. How do I connect the active buzzer module to Arduino?
- The Connections are pretty simple: Connect the Supply wire (RED) of the buzzer to the Digital Pin 9 of the Arduino through a 100-ohm resistor. Connect the Ground wire (BLACK) of the buzzer to any Ground Pin on the Arduino. That's all of it.
4. What is the difference between a passive and an active buzzer?
- An active buzzer generates the sound itself. You basically just turn it on or off. A passive buzzer needs a signal source that provides the sound signal. You can tell which is which by measuring the resistance between the two leads.
