3D Printer Temperature Detection Resistance NTC100K Thermistor Sensor Parts Hot Probe High for Temperature Version (1 meter)
3D Printer Temperature Detection Resistance NTC100K Thermistor Sensor Parts Hot Probe High for Temperature Version (1 meter)
Regular price
Rs. 39
Regular price
Rs. 99
Sale price
Rs. 39
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The temperature measurement of the upgraded HT-NTC100K can be up to 350 degrees, can effectively replace the K-type thermocouple.
- It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.

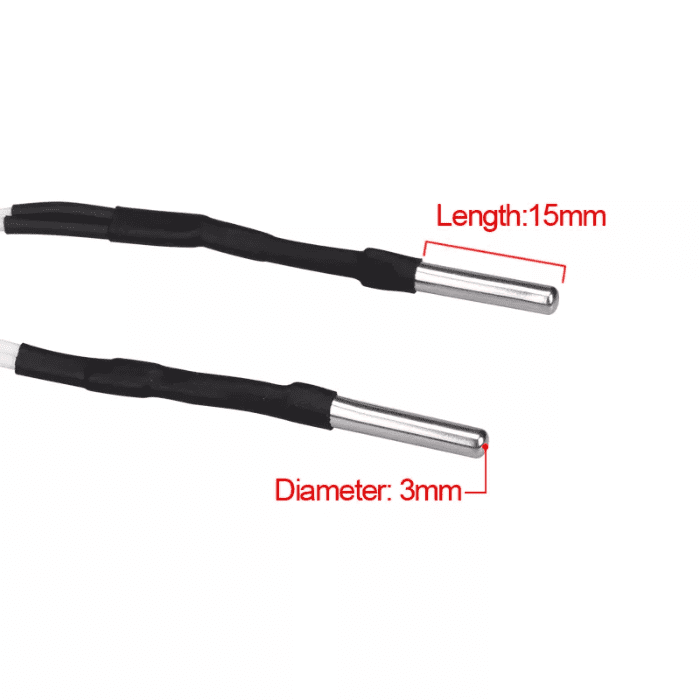

- Temperature measurement head size: 3 * 15mm.
- Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
- The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.
3D Printer Temperature Detection Resistance NTC100K Thermistor Sensor Parts Hot Probe for High Temperature Filament (1 meter)

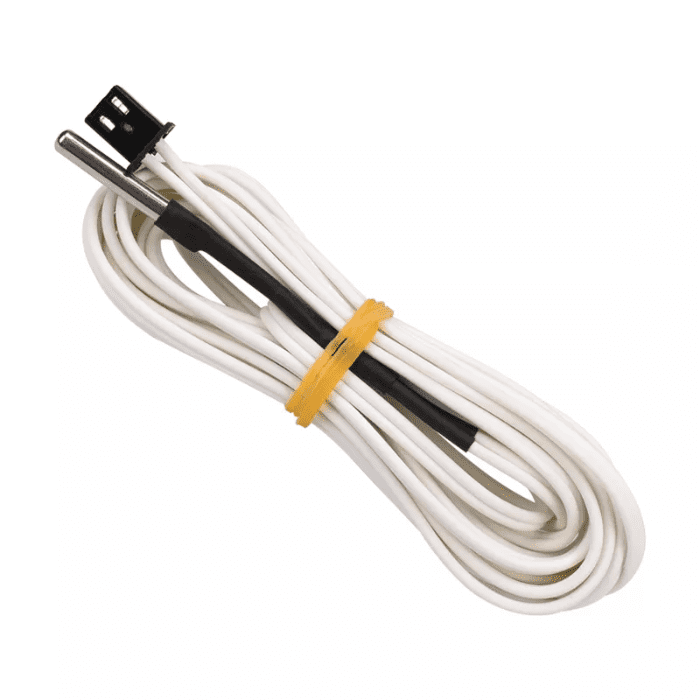

This is Thermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Reprap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.

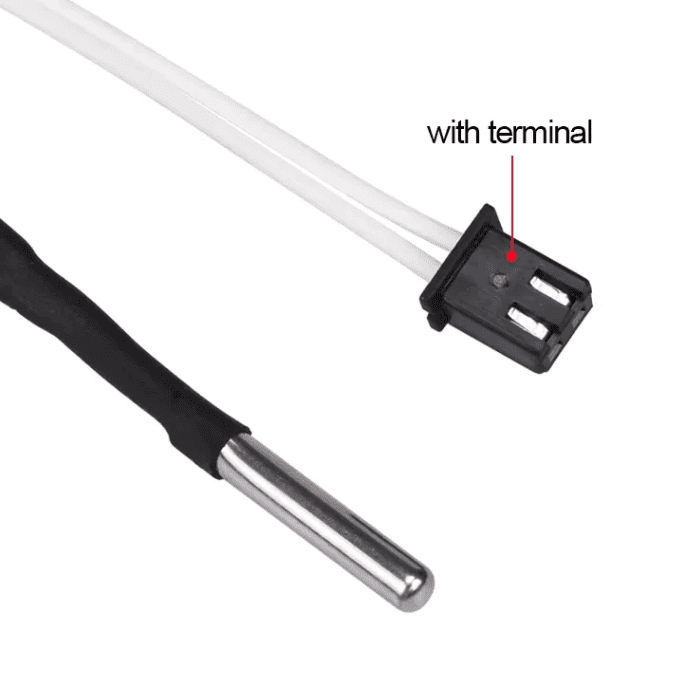

The thermistor comes with a metal tip, making the temperature control more accurate, it will have a better thermal transfer and solve the problem of thermistor fixed unstable and the problem of easy damage. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers' convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high-temperature line is double thicker than others in the market, not easy to break off.
In 3D printers, the temperature and fine-tuning of printers are very important, as print quality can be greatly reduced if the temperature is not set correctly. The thermistor, a temperature sensor capable of withstanding temperatures above 200 degrees Celsius, is used to fine-tune the nozzle’s temperature and heat the device. In most RepRaps, a thermistor senses the temperature of the Hot End.
Package Includes:
- 1 x 3D Printer Temperature Detection Resistance NTC100K Thermistor Sensor Parts Hot Probe for High Temperature Filament (1 meter)
Specifications:
| Cable Length |
1 Meter |
| Max power rating |
45 mW |
| Temperature Measuring Range (°C) |
−40°C to 270°C |
| Accuracy |
1% |
| Diameter(mm) |
2.37 |
| Weight(g) |
8 |
