CD4060 - 14 stage Ripple Carry Binary Counter IC
CD4060 - 14 stage Ripple Carry Binary Counter IC
1
Regular price
Rs. 14
Regular price
Rs. 19
Sale price
Rs. 14
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 22 people are actively viewing.
Same Day Shipping
If Ordered within 20 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 12 MHz clock rate at 15 V
- Common reset
- Fully static operation
- Buffered inputs and outputs
- Schmitt trigger input-pulse line
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices’
CD4060 - 14 stage Ripple Carry Binary Counter IC
The CD4x Series CD4060 IC consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows the design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition. All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times.
The CD4060-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
check out : CD4015 - Dual 4-Stage Shift Register IC

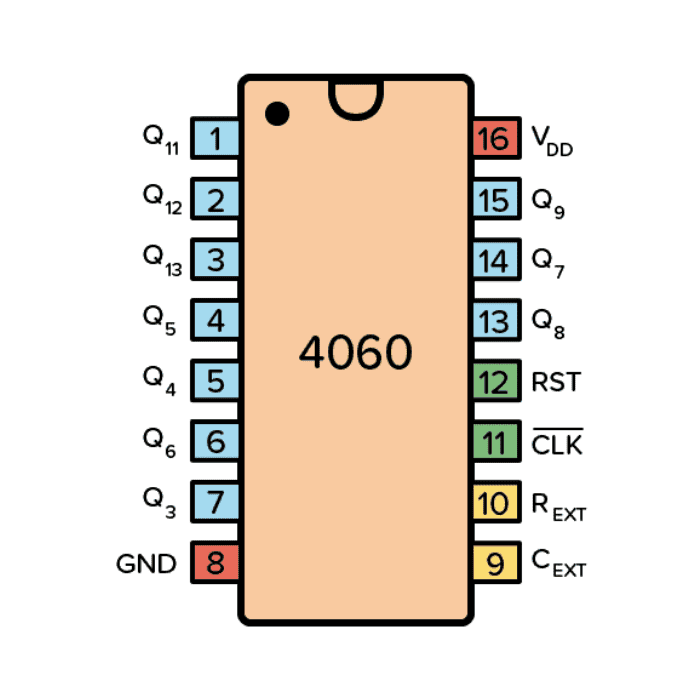

Pinout:
Pinout of CD4060 IC
| Pin Name | Pin # | Type | Description |
|---|---|---|---|
| VDD | 16 | Power | Supply Voltage (+3 to +15V) |
| GND | 8 | Power | Ground (0V) |
| Q3-Q9 | 1-7 | Output | Counter outputs |
| Q11-Q13 | 13-15 | Output | Counter outputs |
| CEXT | 9 | Input | Connection for an external capacitor |
| REXT | 10 | Input | Connection for external resistor |
| CLK | 11 | Input | Clock input/Oscillator pin |
| RST | 12 | Input | Resets the counter |
Applications:
- Control counters
- Timers
- Frequency dividers
- Time-delay circuits
check out : CD4013 - Dual D Type Flip-Flop IC
Package Includes:
Selected qty of IC - CD4060
Specifications:
| Part number | CD4060 |
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Bits (#) | 10 |
| Voltage (Nom) (V) | 10 |
| F @ nom voltage (Max) (MHz) | 8 |
| ICC @ nom voltage (Max) (mA) | 0.03 |
| tpd @ nom Voltage (Max) (ns) | 300 |
| IOL (Max) (mA) | 1.5 |
| IOH (Max) (mA) | -1.5 |
| Function | Counter |
| Type | Binary |
| Operating temperature range (C) | -55 to 125 |
| Package Group | PDIP|16 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1.What is CD4060?
- The CD4060 is a CMOS chip that includes a binary counter and oscillator. It can be used to generate time delays or signals with different frequencies. This is due to the fact that it includes an oscillator module that only requires a few passive electronic components.
2.What voltage is CD4060?
- The CD4060 is a CMOS chip with a binary counter and an oscillator. The CD4060 binary counter IC is simple to use. Simply connect power to the IC via the Vss and Ground pins; it has an operating voltage range of 3V to 18V but is typically used at 5V.
