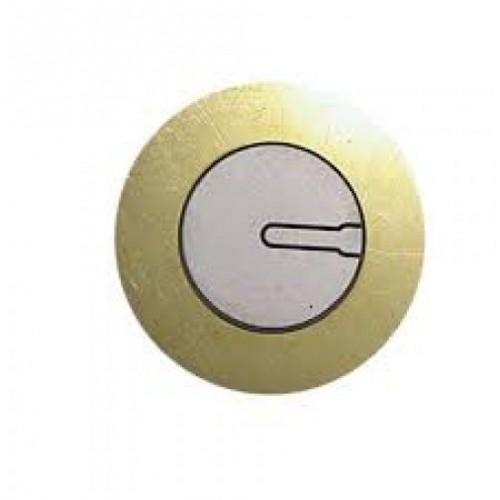

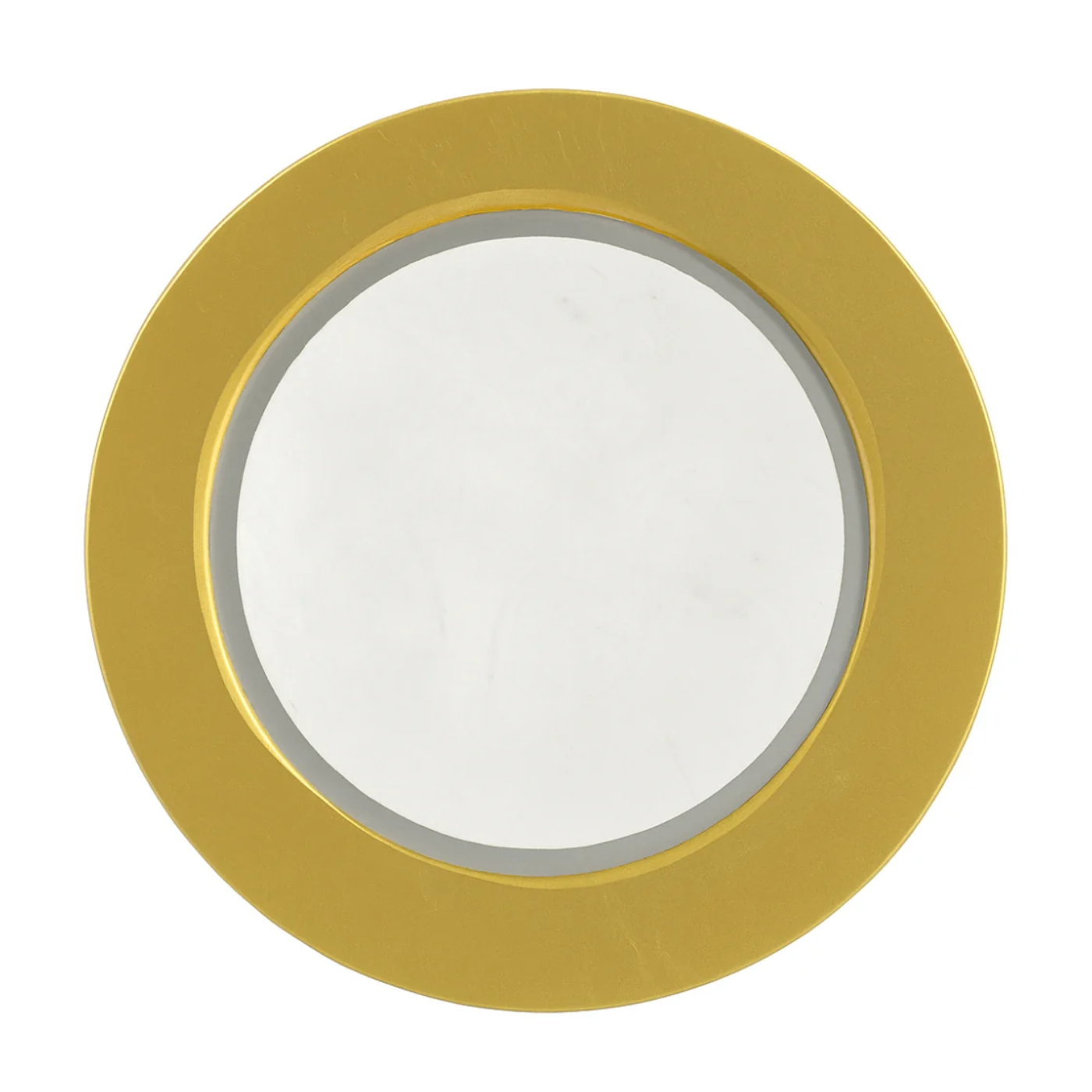

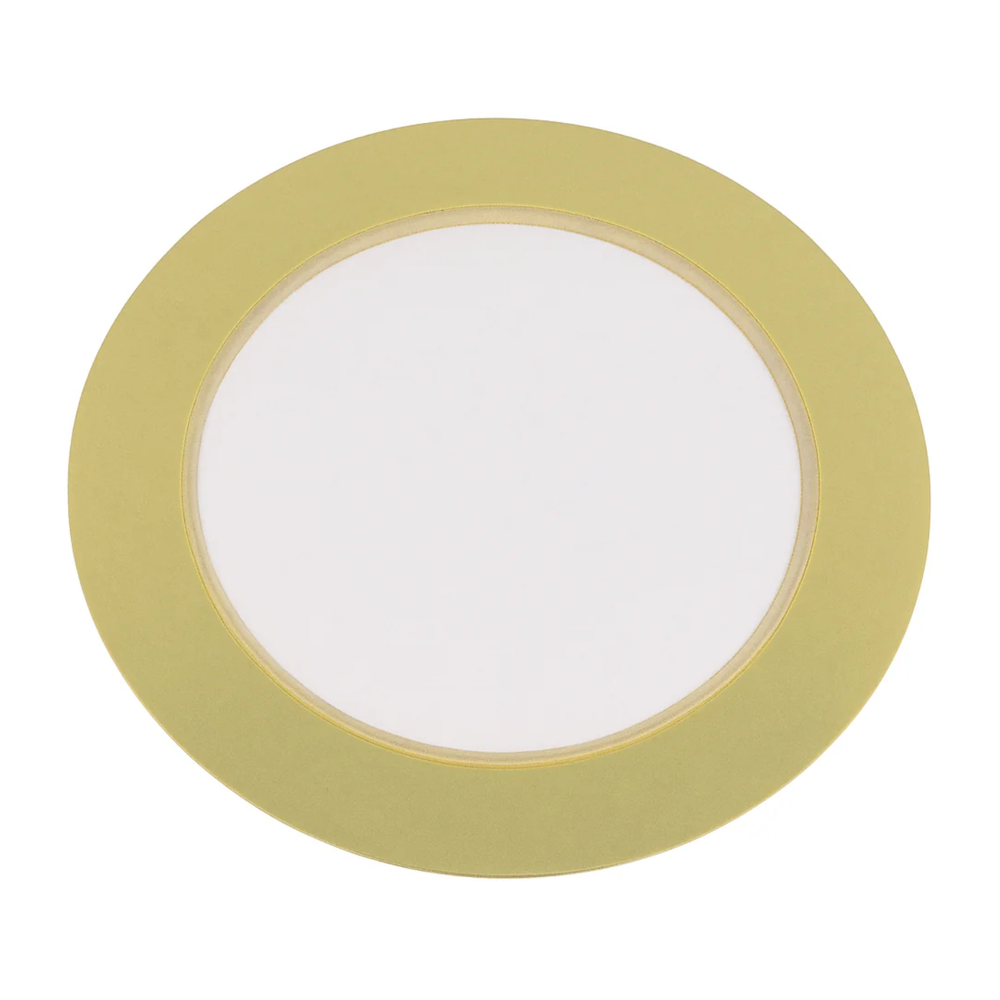

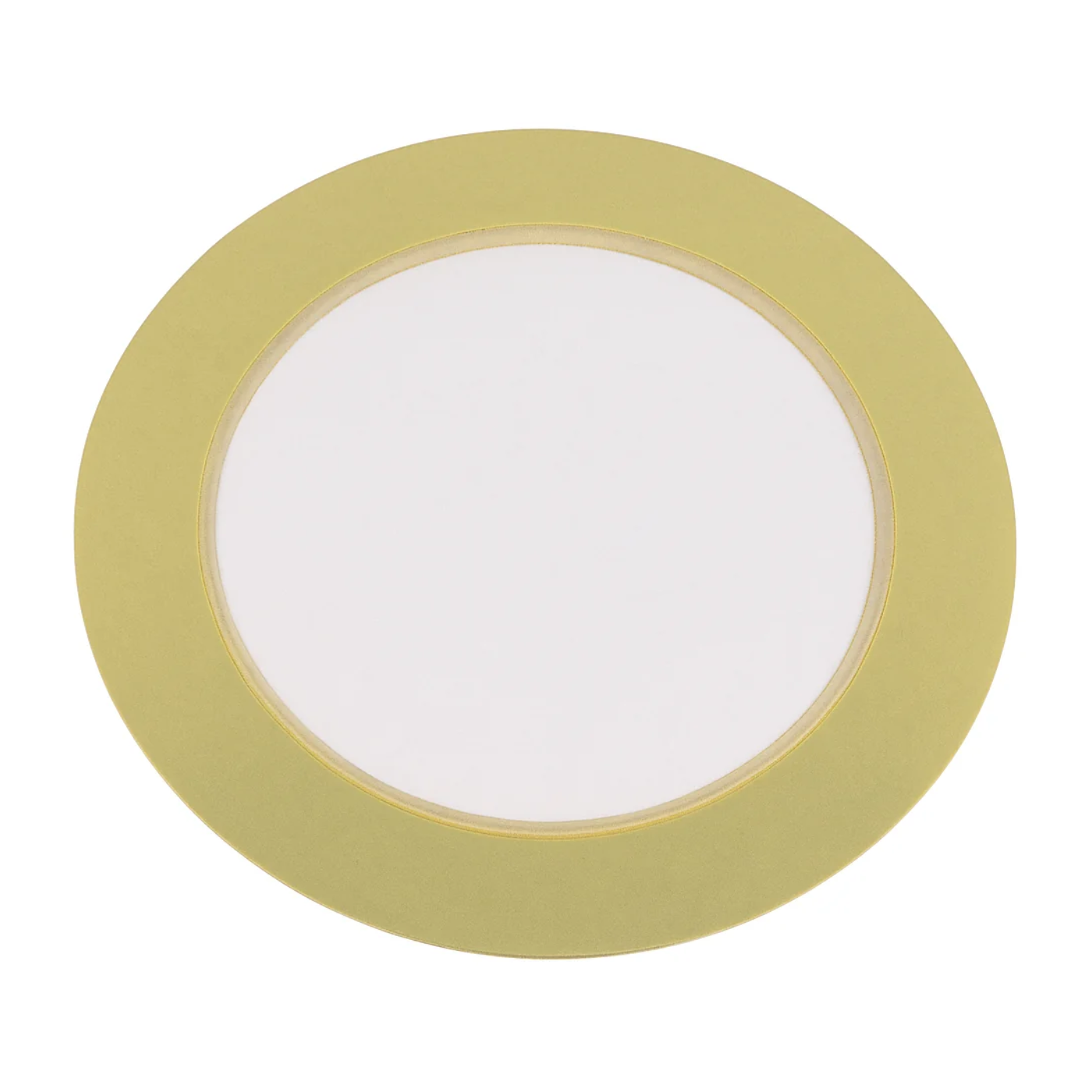

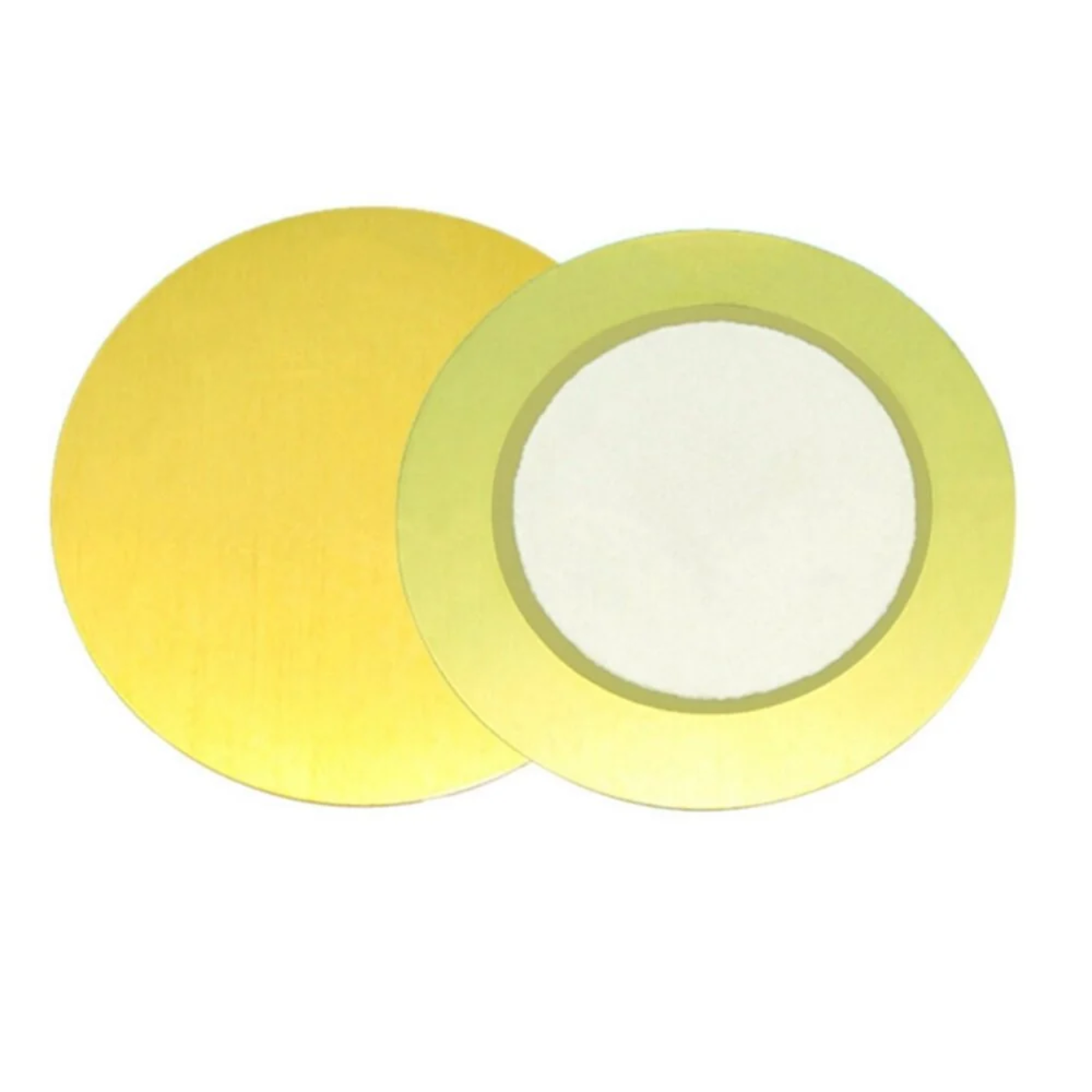

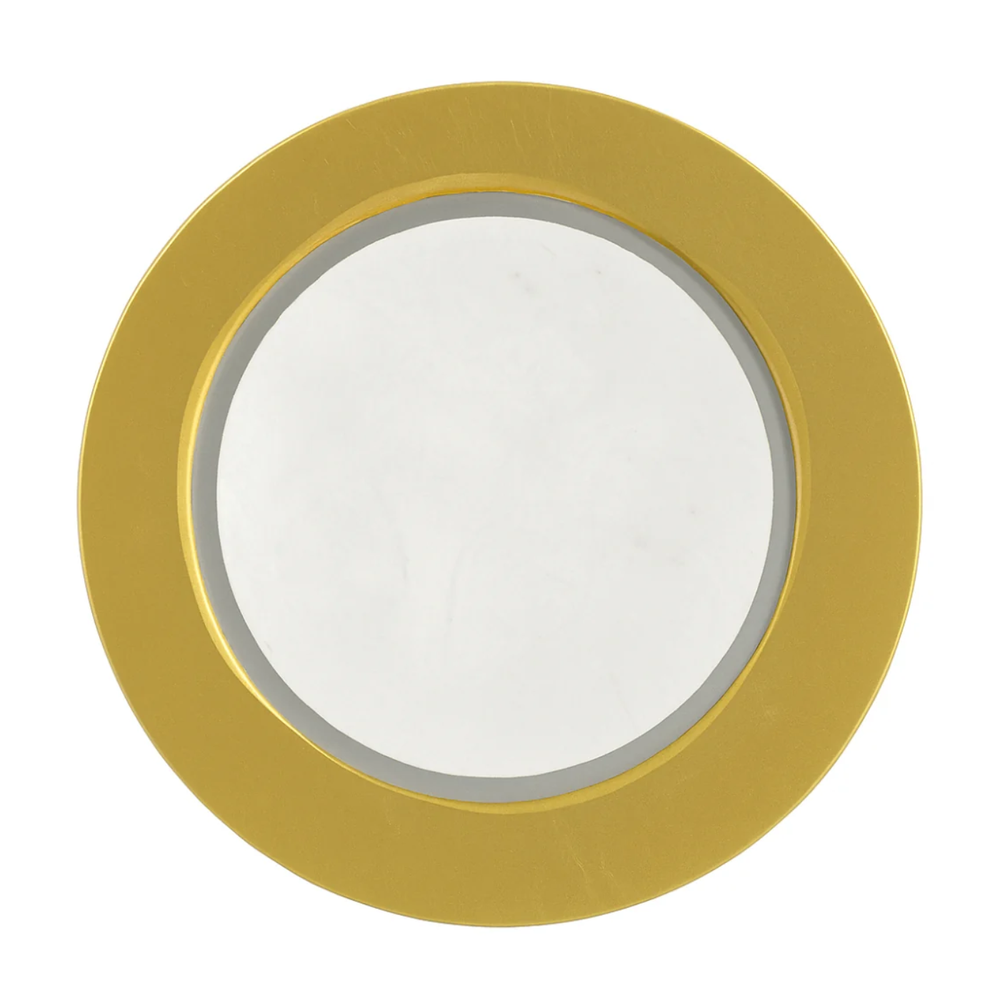

12V Piezo Buzzer Plate (27mm)

12V Piezo Buzzer Plate (27mm)

Regular price Rs. 14
Regular price Rs. 24 Sale price Rs. 14
Sale Sold out 42% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 2 Hours and 22 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • This is a 27mm diameter Piezoelectric Sensor
  • Suitable for creating Buzzers or Touch Sensors
  • It converts voltage to vibration and vibration to voltage.

12V Piezo Buzzer Plate (27mm)

Piezo Electric Sensor /Buzzer/Transducer-27mm , it is basically a device which converts voltage to vibration and vibration to voltage. It normally comes in handy to measure knock (knock sensor) or vibration (vibration sensor). Now a days it is also used extensively in power generation projects e.g. Foot Step Power Generation.

A Piezoelectric transducer is a device that uses the piezoelectric effect to measure pressure, acceleration, strain or force by converting them to an electrical charge

These devices can be used both as sensors and actuators, so they're referred to as transducers, a term applied to any device that can convert one form of energy to another. The sensor turns mechanical energy into electric potential, and the actuator converts electrical energy into mechanical force or motion.

The Piezoelectric material used here, ceramic lead zirconate titanate known as PZT has the ability to provide twice the voltage of Quartz under a given force. These transducers are simple, reliable, and very robust, and so find wide use in industry, medicine, and aero-space work. They're unaffected by external electromagnetic fields, and so can be used in applications where electronic sensors would fail. They are stable over a broad range of temperatures, but may be effected by long use at high temperatures.

Package Includes:

  • 1 x 12V Piezo Buzzer Plate (27mm)

Specifications:

Resonance Frequency  4.6 Khz +/- 0.5 Khz
Resonance Impedance  200 Ohms
Capacitance  20nF +/- 30% at 1 Khz
Operating Temperature  -20 to +70 C
Storage Temperature  -30 to +80 C
