Tri-State Octal D-Type Flip-Flop IC - 74HC574

Tri-State Octal D-Type Flip-Flop IC - 74HC574

Regular price Rs. 22
Regular price Rs. 29 Sale price Rs. 22
Sale Sold out 24% off Best Price Guaranteed
You save Rs. 7 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Typical propagation delay: 18 ns
  • Wide operating voltage range: 2V–6V
  • Low input current: 1 µA maximum
  • Low quiescent current: 80 µA maximum
  • Compatible with bus-oriented systems
  • Output drive capability: 15 LS-TTL loads
Trust Badge 1 Trust Badge 2 Trust Badge 3

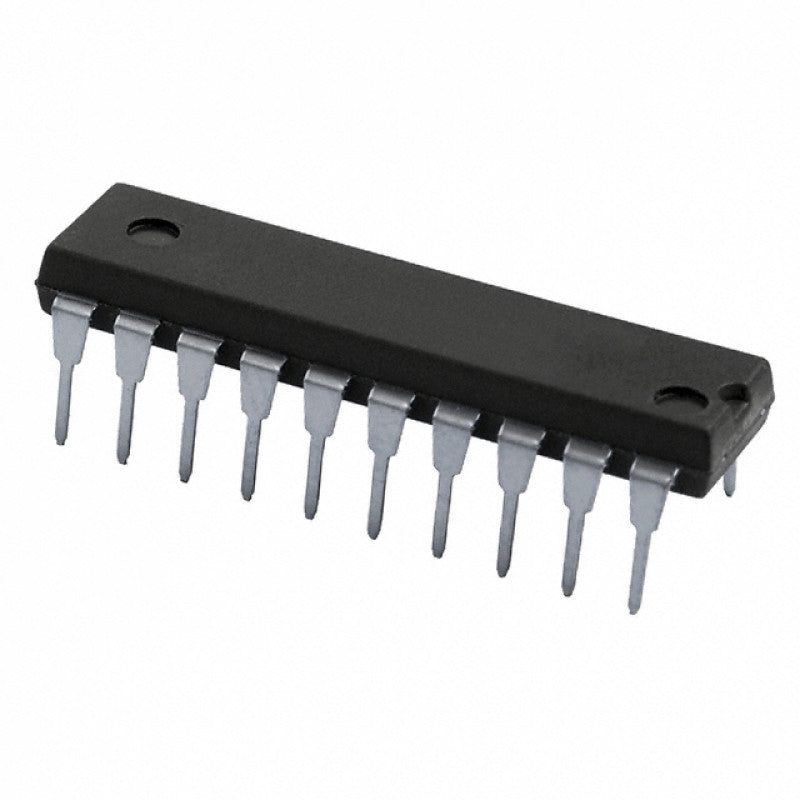

Tri-State Octal D-Type Flip-Flop IC - 74HC574

The 74HC Series 74HC574 IC high-speed octal D-type flip-flops utilize advanced silicon-gate P-well CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system. These devices are positive edge-triggered flip-flops.

Data at the D inputs, meeting the set-up and hold time requirements, are transferred to the Q outputs on positive-going transitions of the CLOCK (CK) input. When a high logic level is applied to the OUTPUT CONTROL (OC) input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. The 74HC logic family is speed, function, and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and the ground.

Pinout:

Pinout of 74HC574 IC

Package Includes:

  • 1 x IC - 74HC574

Specifications:

Supply Voltage (VCC − 0.5 to + 7.0V
Input Voltage (VIN) −1.5V to VCC + 1.5V
Output Voltage (VOUT) − 0.5 to VCC + 0.5V
Clamp Diode Current (IIK, IOK) ± 20 mA
DC Output Current, per pin (IOUT) ± 35 mA
DC VCC or GND Current, per pin (ICC) ± 70 mA
Storage Temperature Range (TSTG) − 65°C to + 150°C
Power Dissipation (PD) (Note 4) 600 mW
S.O. Package only 500 mW
Lead Temperature (TL) (Soldering 10 seconds)  260°C

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is 74HC574?

  • The 74HC574 is an 8-bit positive-edge triggered D-type flip-flop with three output states. The device has clock (CP) and output enable (OE) inputs. On the LOW-to-HIGH clock (CP) transition, the flip-flops will save the state of their individual D-inputs that meet the set-up and hold time requirements.

2.What is the clock input in the 74HC574 IC used for?

  • The 74HC574 IC's clock input is used to synchronise the state of the flip-flops with an external signal. The input data is latched into the corresponding flip-flop on each rising edge of the clock signal.
