Robocraze

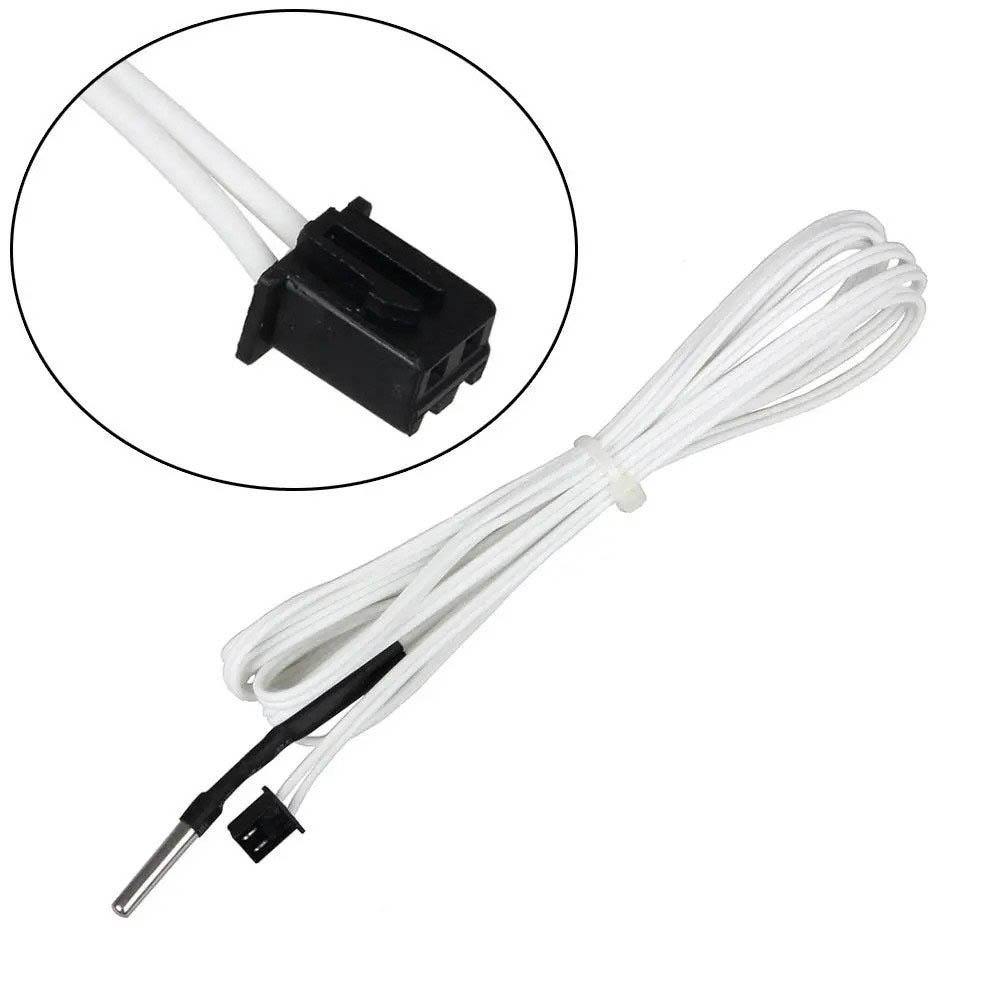

Thermistor Temperature Sensor HT-NTC100K- 2M
Thermistor Temperature Sensor HT-NTC100K- 2M
Low stock: 6 left
Regular price
Rs. 66
Regular price
Rs. 74
Sale price
Rs. 66
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.

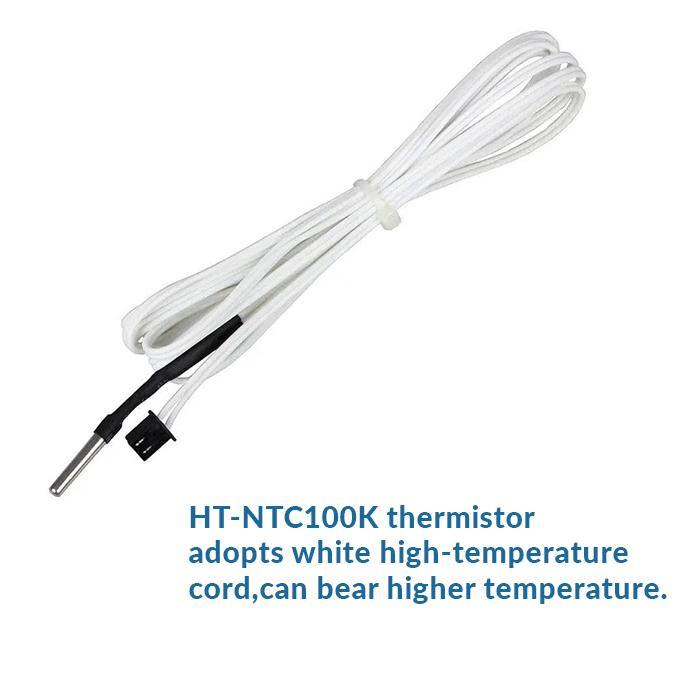

- HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature.
- Supports the customization of different specifications, including the temperature head cylinder size, length of the wires.
- Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
- It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature.
Thermistor Temperature Sensor HT-NTC100K- 2M
NTC type temperature sensor 10K 1% with Two tinned copper wire cables consists of NTC element, SUS housing, two tinned wire cable, terminal, and temperature probe. The sensor is protected by a rubber or a stainless steel capsule, both waterproof. It is a proper solution for either heating or cooling applications.
Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 350 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and results in temperature fluctuation that can affect the printing quality. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
Applications:
- Household air conditioner
- Solar water heater
- Refrigerator
- Stove
- Induction cooker
- Electric oven
- Home appliances
- Floor heating
- 3D printers
Package Includes:
- 1 x Thermistor Temperature Sensor HT-NTC100K- 2M
Specifications:
| Resistance value | 10 KΩ |
| Lead wire insulation | PVC, PTFE, Silicon latex Fiberglass, rubber |

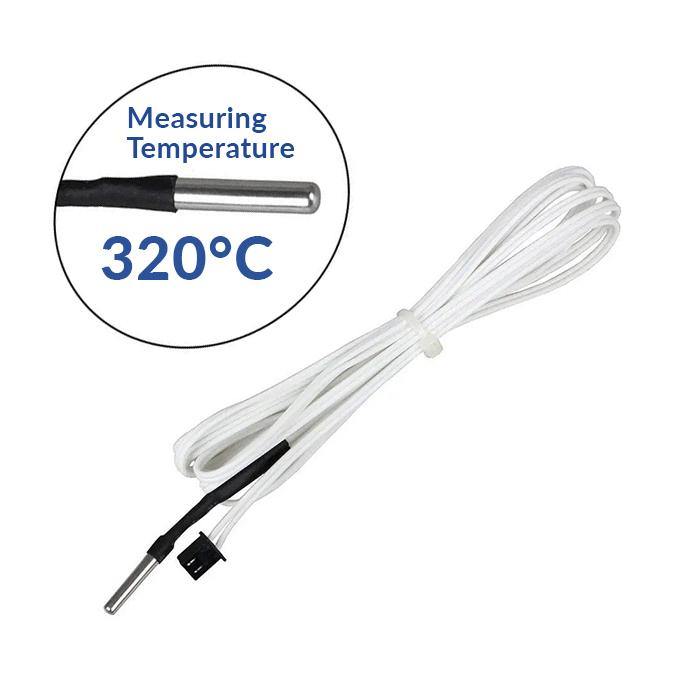

| Temperature measurement | -50 ℃ - 320 ℃ |
| Lenght | 2m |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a thermistor?
- A thermistor is a type of resistor whose resistance is more sensitive to temperature than standard resistors. The term thermistor is a combination of the words thermal and resistor. Thermistors are classified according to their conduction model. At higher temperatures, Negative Temperature Coefficient (NTC) thermistors have less resistance, whereas Positive Temperature Coefficient (PTC) thermistors have more resistance.
2. What is a thermistor temperature sensor?
- Thermistors, which are derived from the term thermally sensitive resistors, are extremely accurate and cost-effective temperature sensors. The thermistor is of 2 types, NTC (negative temperature coefficient) and PTC (positive temperature coefficient), it is the NTC thermistor that is commonly used to measure temperature.
3. Where can I use the thermistor sensor?
- A thermistor's primary function is to measure the temperature of a device. The thermistor sensor is mainly used in household air conditioners, Solar water heaters, refrigerators, Stove, Induction cookers, Electric ovens, Home appliances, Floor heating, and 3D printers.
4. How do thermistor sensors work?
- Thermistors change resistance with temperature changes. They are temperature-dependent resistors. They're ideal for situations where a specific temperature must be maintained because they're sensitive to small temperature changes.
