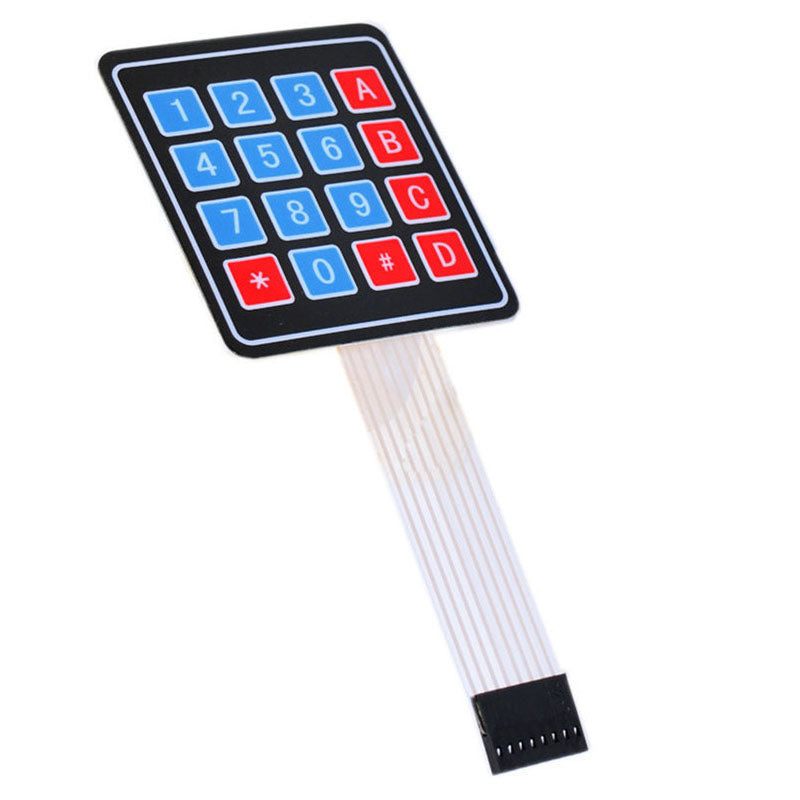

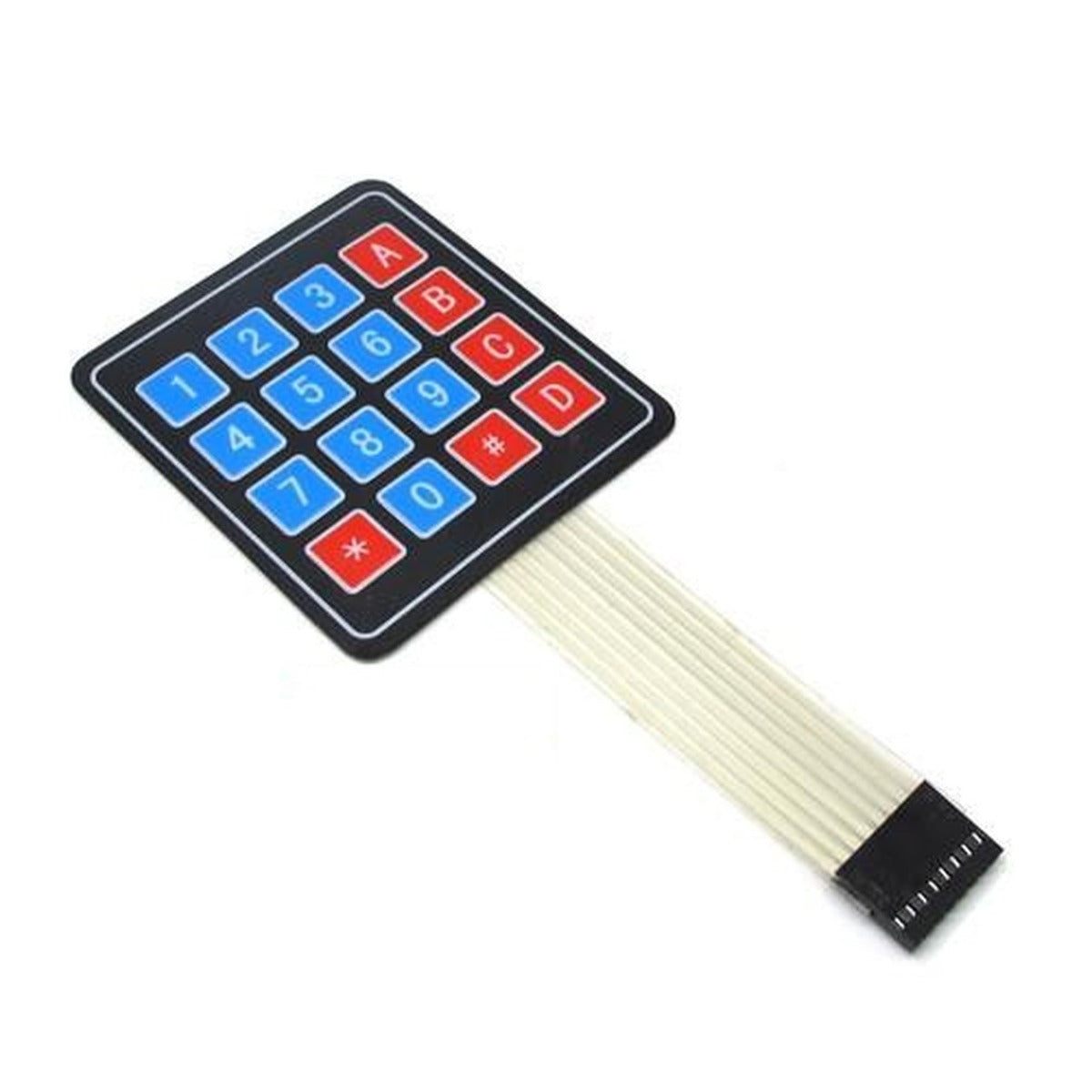

4x4 Membrane Keypad

4x4 Membrane Keypad-Robocraze
4x4 Membrane Keypad-Robocraze
4x4 Membrane Keypad-Robocraze
  • 4x4 Membrane Keypad-Robocraze
  • 4x4 Membrane Keypad-Robocraze
  • 4x4 Membrane Keypad-Robocraze

4x4 Membrane Keypad

Best Price Guaranteed

Best Price Guaranteed
Regular price
Rs. 39
Sale price
Rs. 39
Regular price
Rs. 62
You save Rs. 23
37% off
You save Rs. 23
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team



  • Ultra-thin design & adhesive backing provides easy integration to any project
  • Excellent price-performance ratio
  • Easy communication with any microcontroller
  • 5 pins 2.54mm pitch connector, 4x 4type 16 keys.
  • Sticker can peel off for adhesive mounting.
  • Used widely in industrial and home electronic equipments, instrument, etc.
  • This allows a microcontroller to ‘scan’ the 8 output pins to see which of the 16 buttons is being pressed.

4x4 Membrane Keypad

This 4×4 Membrane is a high-quality soft-touch feeling button keypad with 100 million life-stroke lifespans and good resistance to environmental conditions. This 4×4 Membrane Keypad is a high-quality product at a very low cost for your application needs.

This 16-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications.

The Keypad 4×4 features a total of 16 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 8-pin berg connector is require for interfacing it with your microcontroller circuits.

Package Includes:

  • 1 x 4x4 Membrane Keypad

Specifications:

Keypad Matrix  4x4 Keypad Matrix
Operating Voltage 12V (DC)
Dimensions 7.9 x 6.9 x 1cms
Weight  25 grams

1. What is matrix keypad?

  • A matrix keyboard is the type of keyboard found on many devices such as gas pumps and calculators. A matrix keyboard that can be connected to a breadboard is also great for prototyping and inventions where you need to enter things like code, time or other values.

2. How do membrane keypads work?

  • A microcontroller can sense when the lines that are pressed in the keypad. In the keyboard library, the propeller sets all columns to input and all rows to input. Then select the row and set it high. Then it checks the rows of the columns one by one. If the column connection remains low, the button for that row has not been pressed. When it goes high, the microcontroller knows which row (set high) and which column (check was detected as high).

3. What is 4X4 membrane keypad?

  • The 4x4 matrix membrane keyboard provides an easy interface to embedded systems such as Arduino. The 4x4 keyboard has a total of 16 keys arranged in a matrix and is made of a thin, flexible membrane material with an adhesive backing (just peel off the paper) so it can be attached to almost anything. You can install it though.
