24V 40W Ceramic Cartridge Heater Wire

24V 40W Ceramic Cartridge Heater Wire

Regular price Rs. 80
Regular price Rs. 119 Sale price Rs. 80
Sale Sold out 33% off Best Price Guaranteed
You save Rs. 39 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.


FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • The ceramic cartridge heater is highli compatible with RepRap and Prusa 3D printer models.
  • This ceramic cartridge heater is 24V 40W powered wire.

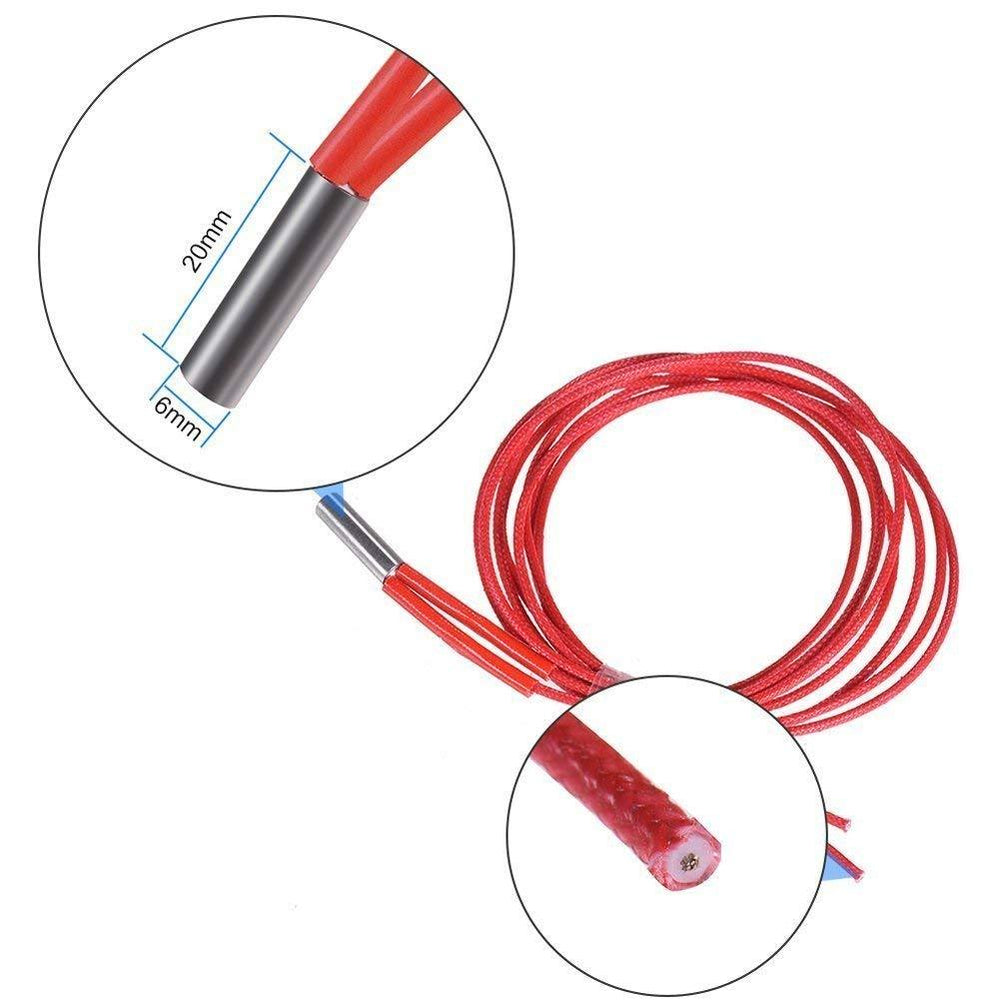

  • The tube of the ceramic catridge heater is made of 304 stainless steel and measure 20mm in length. This provides protection against corrosion.
  • The red coloured catridge heater wire has a 8mm diameter and measure 1metre in length.

24V 40W Ceramic Cartridge Heater Wire

The 24V 40W ceramic cartridge heater wire is specifically designed for RepRap and Prusa 3D printer models. The ceramic cartridge heater is integrated with a cylindrical tube that is made of stainless steel. The importance of the material used is that it provides greats resistance against corrosion. The ceramic heater wire is also equipped with a heating wire inside which is wound onto a ceramic core. It features a number of coils that provides uniform distribution of heat and improves the life and efficiency of the ceramic cartridge heater.

Package Includes:

  • 1 x 24V 40W Ceramic Cartridge Heater Wire

Features of 24V 40W Ceramic Cartridge Heater Wire

Material 304 Stainless Steel
Voltage 12V
Power 40W
Wire Length 1 metre
Diameter of the wire 6mm
Length of the steel 20mm
Weight  50 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.Why do cartridge heaters fail?

  • Cartridge heaters can fail due to a variety of reasons, including:
    • Overheating: If the temperature of the heater exceeds its maximum operating temperature, the heater can fail. This can be caused by a malfunctioning temperature control system, a clogged or dirty heating element, or a lack of proper cooling.
    • Overloading: If the heater is supplied with too much current or voltage, it can become damaged and fail. This can be caused by a power supply issue, a wiring issue, or a malfunctioning control system.
    • Physical damage: Cartridge heaters can be damaged if they are subjected to physical stress, such as bending, crushing, or impact. This can be caused by improper handling, installation, or maintenance.
    • Poor quality: If the cartridge heater is made from low-quality materials or is poorly manufactured, it may fail earlier than expected.
    • Corrosion: If the heater is exposed to corrosive substances or environments, it can become damaged and fail.

2.How do I know if my heater cartridge is 12V or 24V?

  • There are several ways to determine if your heater cartridge is 12V or 24V:
    • Check the specifications: The voltage of the heater cartridge should be specified in the manufacturer's product specifications or datasheet.
    • Check the wiring: If you have access to the wiring of the heater cartridge, you can check the voltage rating of the power supply or the wiring itself.
    • Test the voltage: You can use a multimeter to measure the voltage across the heater cartridge terminals. Make sure to disconnect the power supply before testing the voltage.
    • Consult the manufacturer: If you are unsure of the voltage of the heater cartridge, you can contact the manufacturer or the supplier for more information.

3.What is ceramic cartridge heater?

  • Ceramic cartridge heaters are a type of heating element that can be found in a wide range of industrial, commercial, and residential applications. It is made up of a cylindrical metal casing that houses a ceramic core surrounded by resistance wire. When an electrical current is passed through the wire, heat is generated, which is then transferred to the surrounding environment via the ceramic core.
