- High precision
- Maximum measuring distance 2m
- Measurement accuracy ±3%
- 940nm laser VCSEL
- Compatible with multi-platform development UIFlow, MicroPython, Arduino
| Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection |

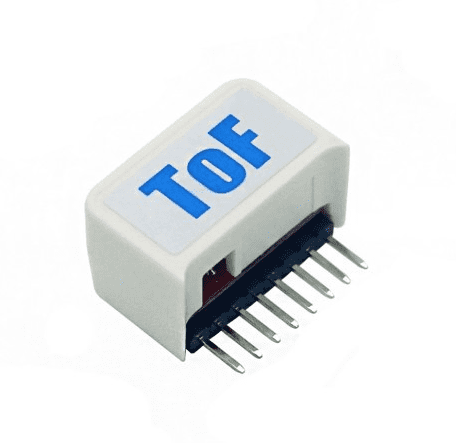

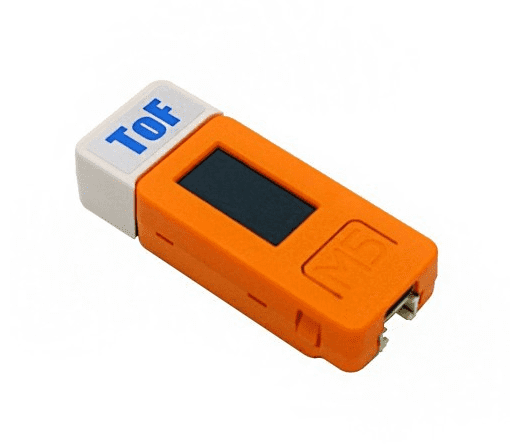

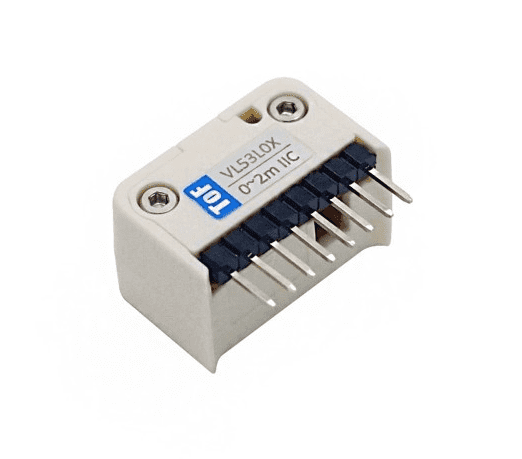

M5 StickC ToF HAT (VL53L0X)
ToF HAT is a high-precision laser-ranging sensor specifically designed for M5StickC. Integrated with VL53L0X and 940nm VCSEL emitter. It can provide high precision and low latency performance on object distance detection. The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances, unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications. The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second-generation FlightSenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (Vertical-Cavity Surface-Emitting Laser), is invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.
Communication Info: I2C, 0x29, GPIO0/26.
Applications:
- Obstacle recognition
- Gesture Recognition
- Laser Ranging
- 3D structured light imaging (3D sensing)
- Camera assist (super-fast autofocus and depth of field map)
Package Includes:
1 x ToF Hat
Specifications:
| Communication protocol | I2C：0x29 |
| Measuring distance | 0.3-2m |
| Measurement accuracy | ±3% |
| Dimensions |
24 x 20.3 x 13.8mm |
| Weight | 8gm |
