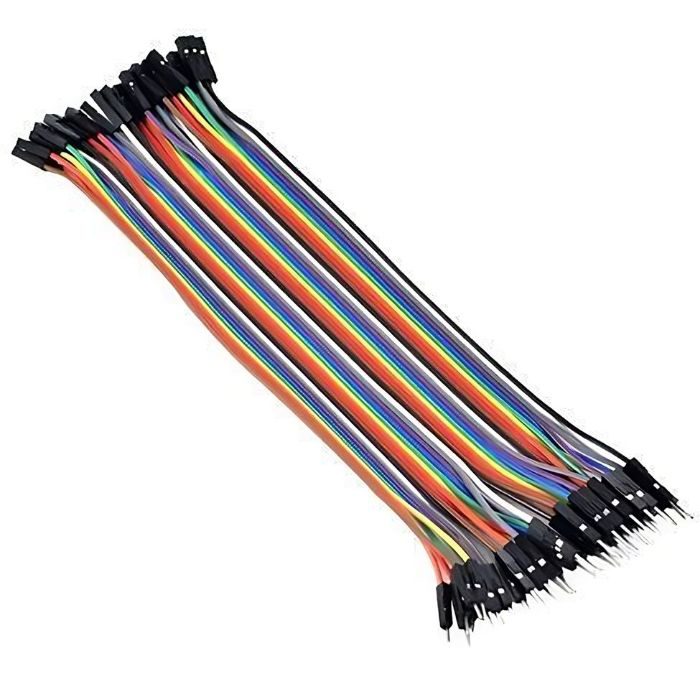

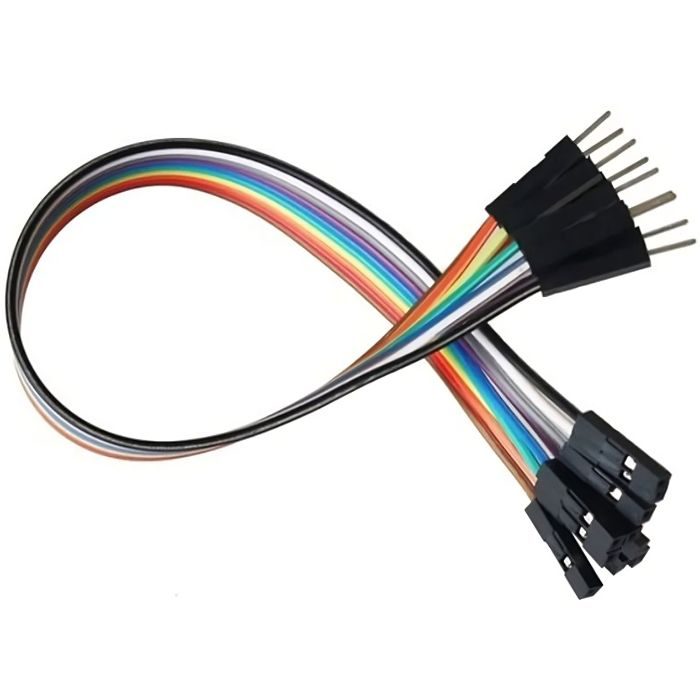

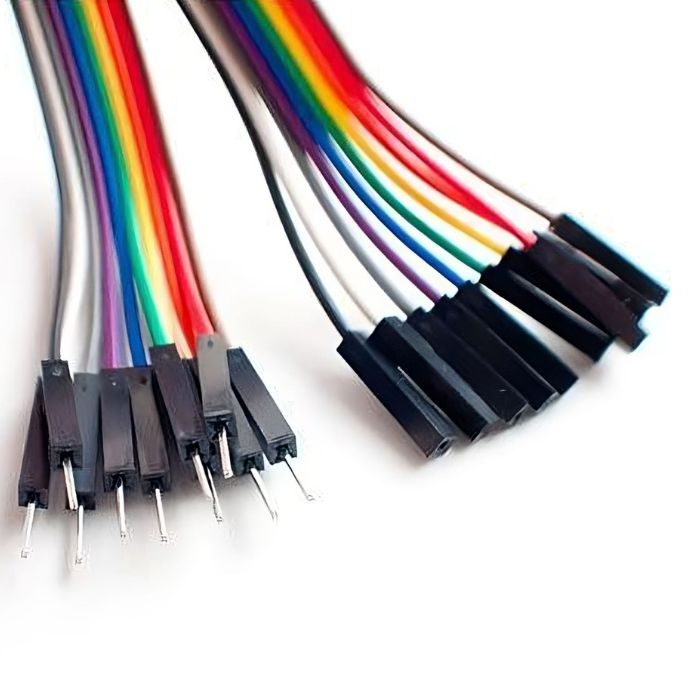

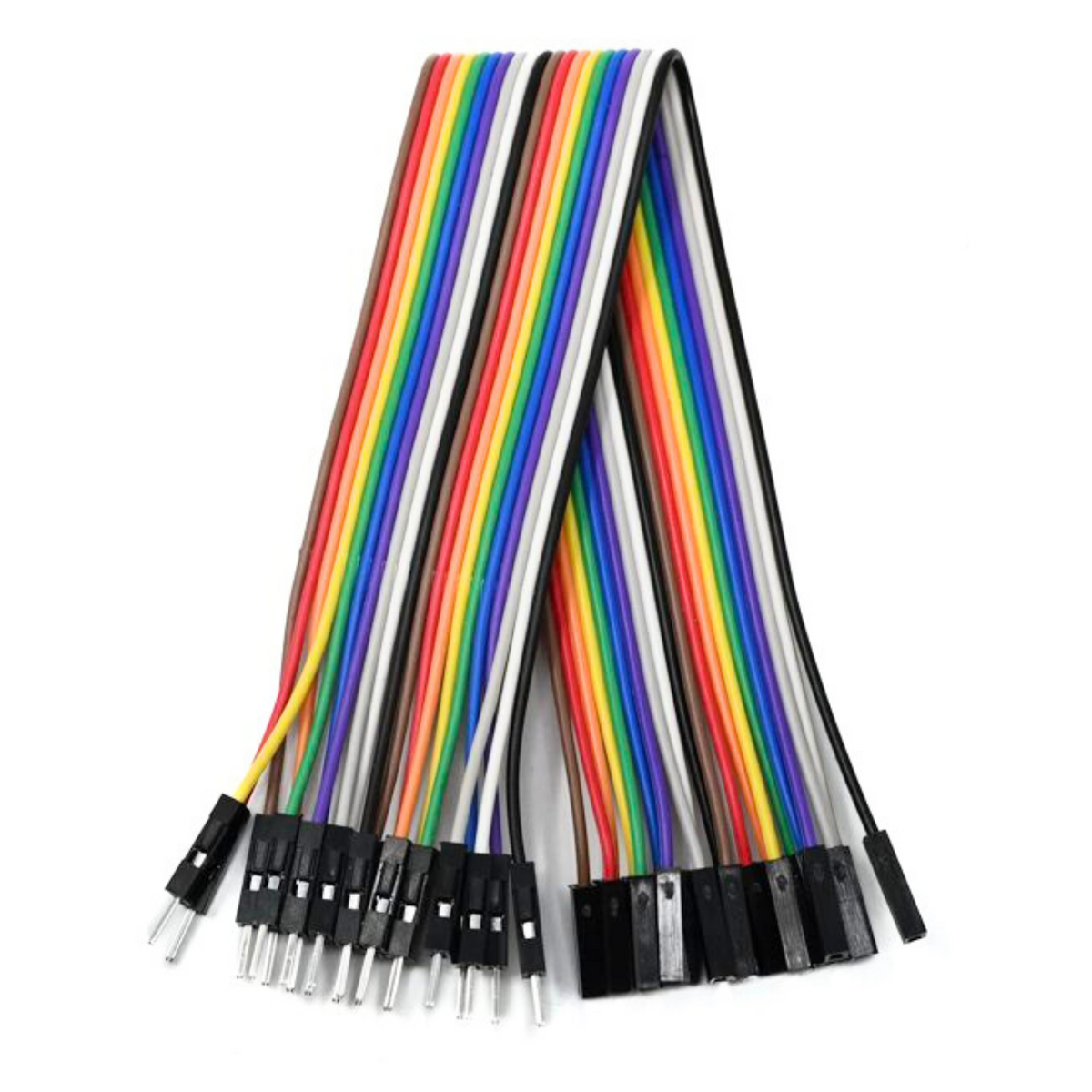

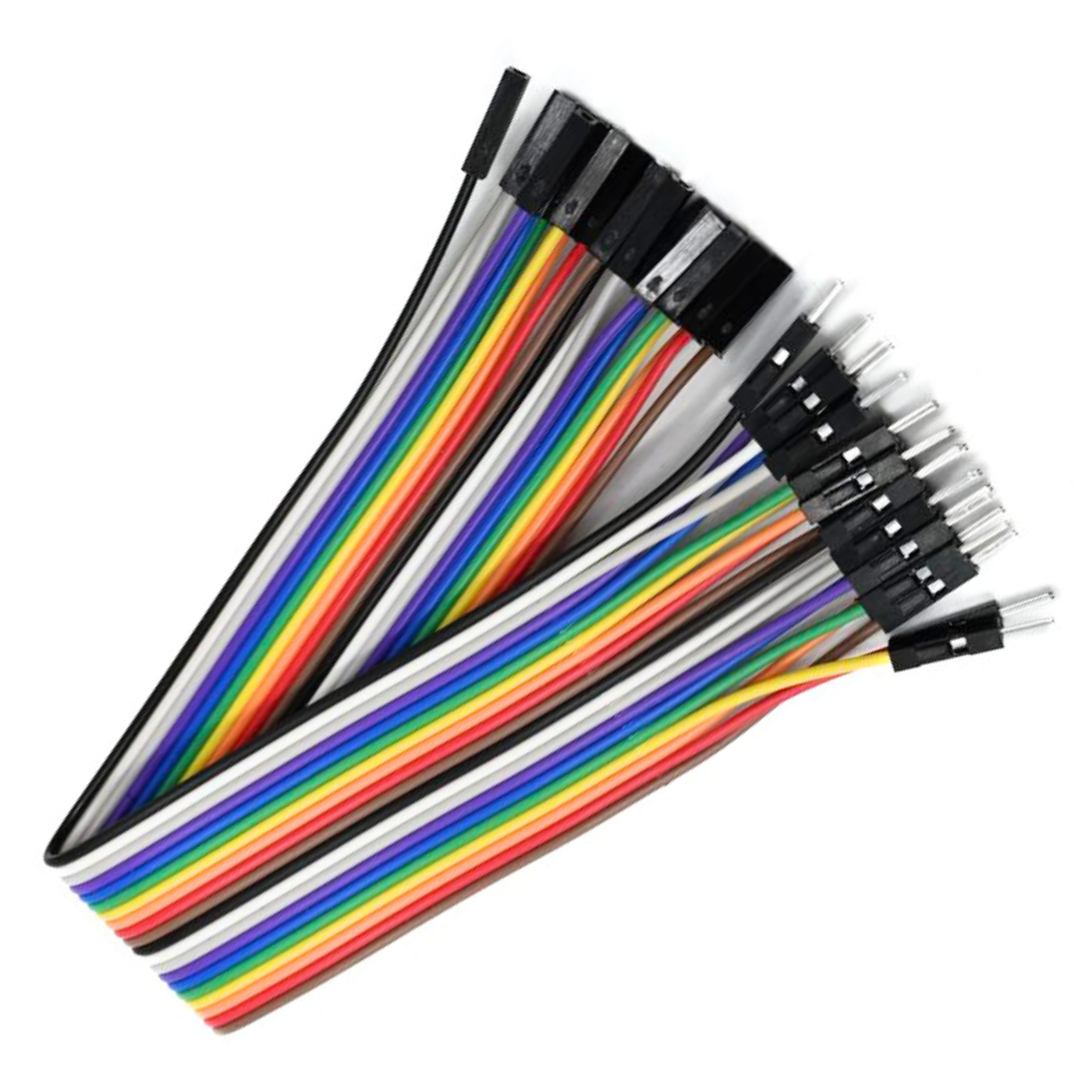

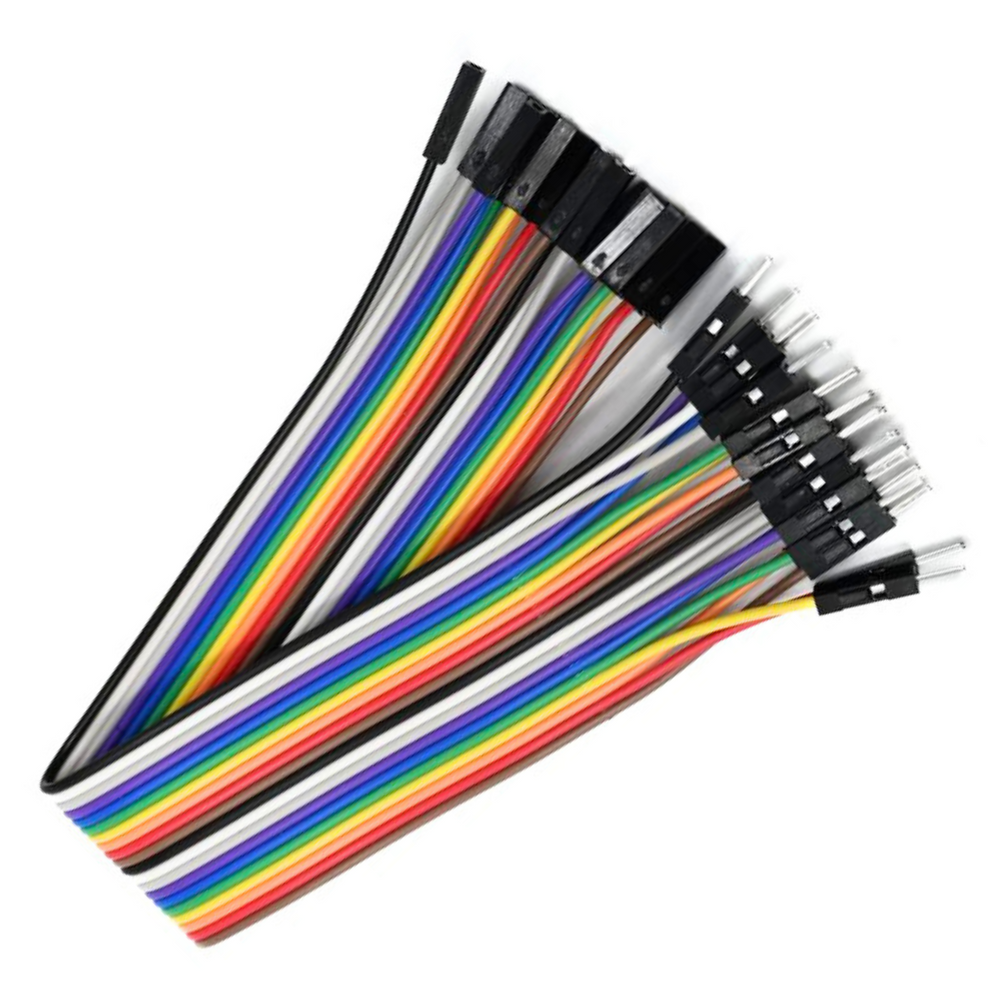

1. What is female to male jumper wires?
- The difference between them is in the wire's endpoint. Male ends have a protruding pin and can plug into things, whereas female ends do not and must be plugged into.
2. What is the purpose of jumper wires?
- Jumper wires are electrical cables that have connector pins on both ends. They are used to join two points in a circuit without using solder. Jumper wires can be used to modify a circuit or to diagnose problems in a circuit.
3. Are all jumper wires the same?
- There are various types of jumper wires. Some have the same type of electrical connector at both ends, while others do not. Some examples of common connectors are: Solid tips are used to connect to and from a breadboard or female header connector.
4. What is the difference between a male and female wire?
- A male connector, also known as a plug, has a solid pin for a center conductor. A female connector, also known as a jack, has a center conductor with a hole in it to accept the male pin.
5. Why do you need jumper cables in Arduino?
- Jumper wires are used to connect items on your breadboard to the header pins on your Arduino. We will use them to connect all of our circuits
6. How many types of jumper wires are there?
There are three types of Jumper wires are available
- Male-to-male jumper wires
- Male-to-female jumper wires
- Female-to-female jumper wires.
7. What is the maximum voltage for jumper wire?
The maximum voltage for a jumper wire, specifically in the case of a 2 AWG jumper cable, is approximately 35,000 volts or 35 kV. This is based on the cable's ability to handle a maximum ampacity of 165 Amps at that voltage level. However, it's crucial to note that this information is specific to the described jumper cable size and its intended use case.
8. Is positive red or black in a jumper wire?
In jumper wires, red usually means positive, and black means negative. This helps make sure connections are right and avoids mix-ups.
9. Why are jumper cables color coded?
Jumper cables are color-coded to differentiate between positive and negative terminals, ensuring safe and correct connections when jump-starting vehicles or working with electrical systems. This color scheme helps prevent accidental reversals, which could lead to damage or injury.
