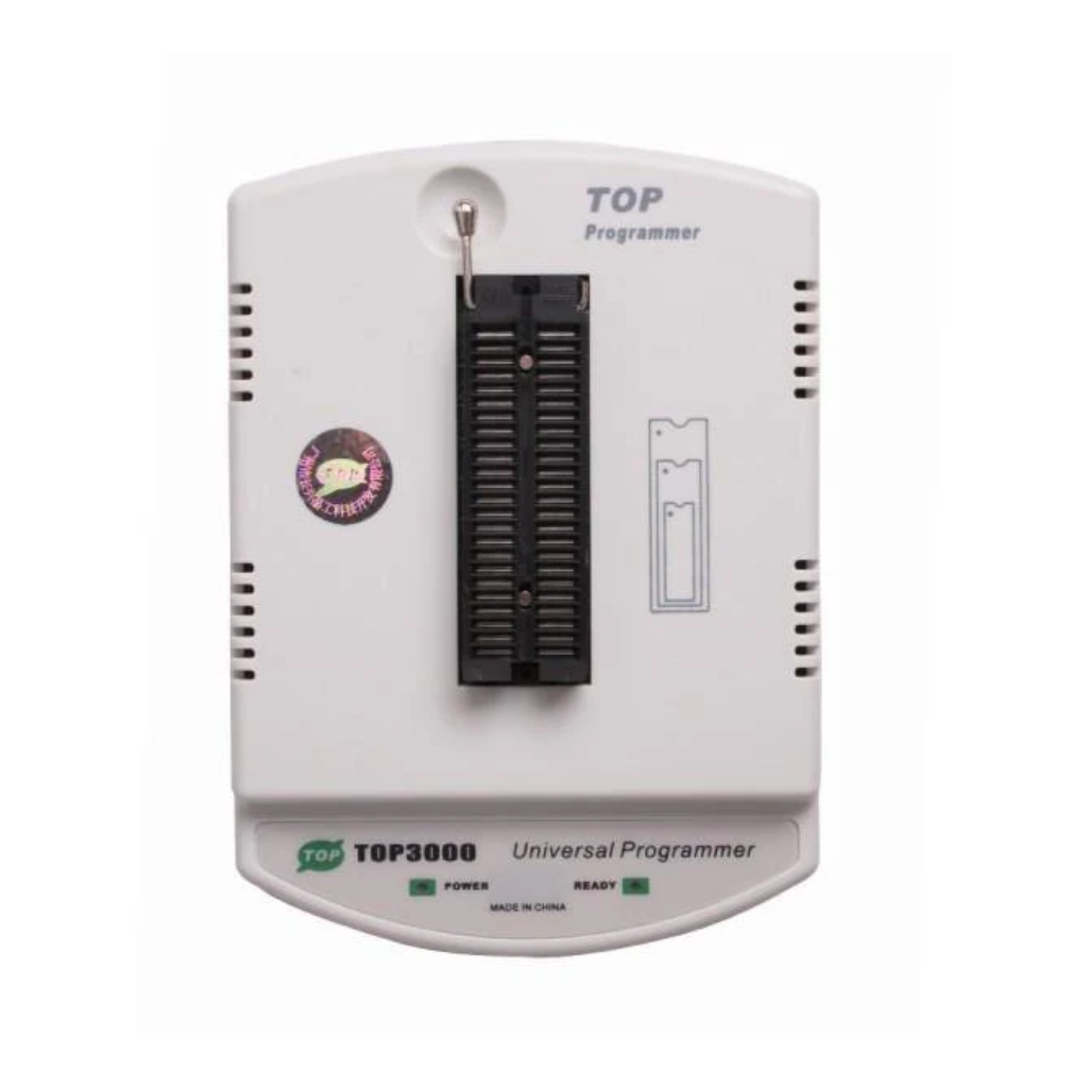

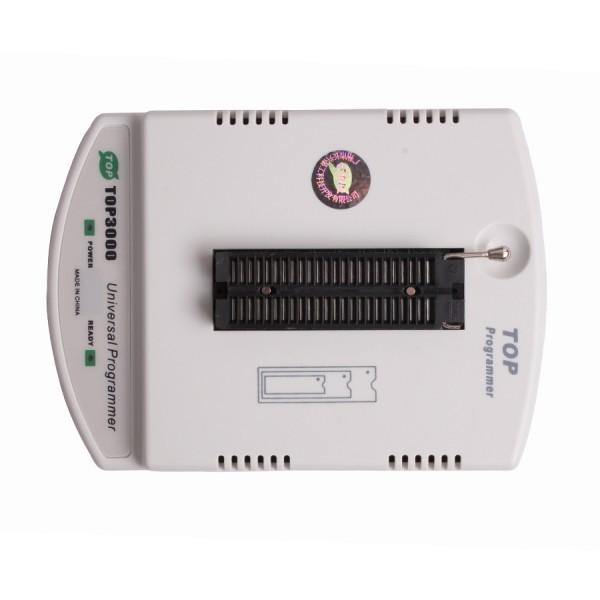

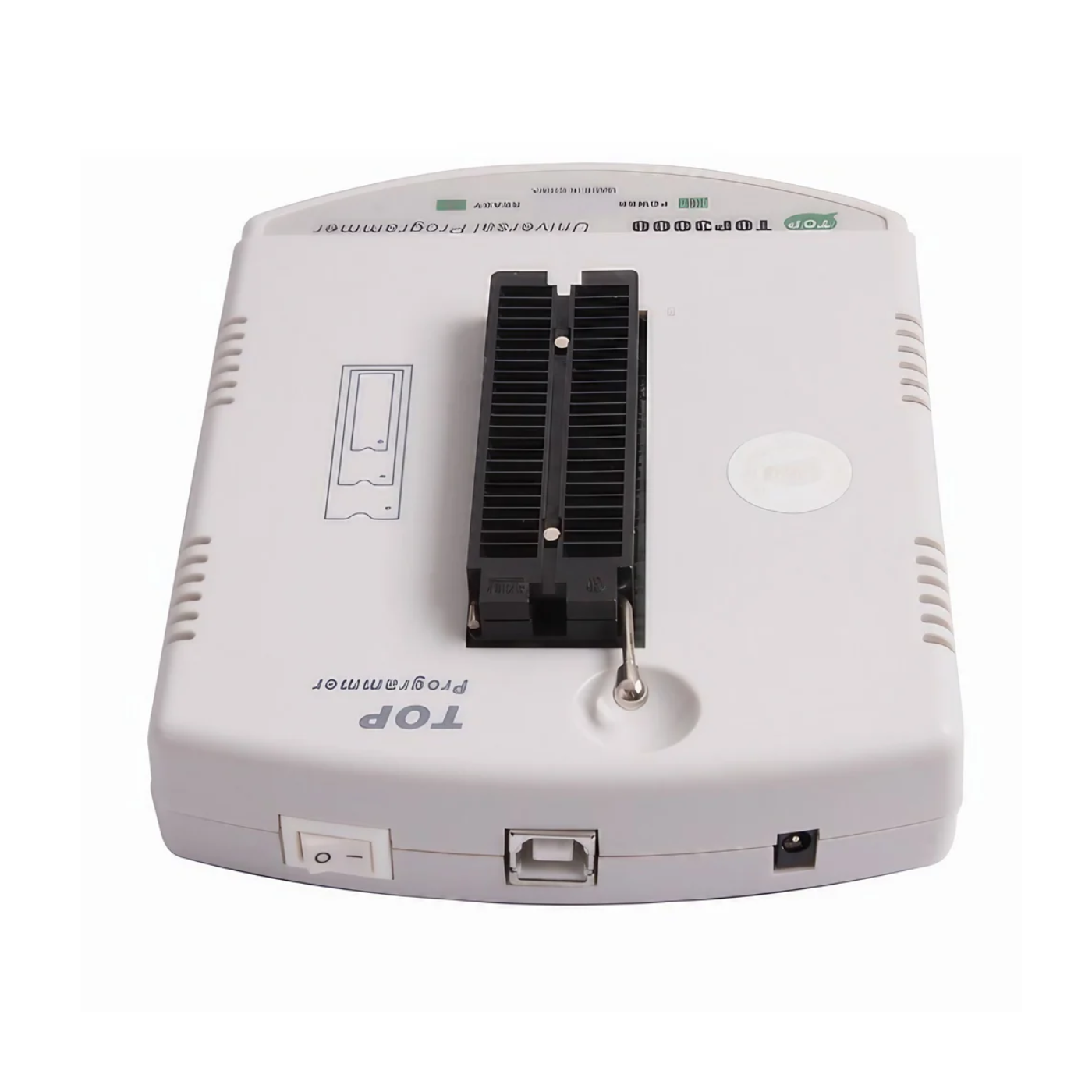

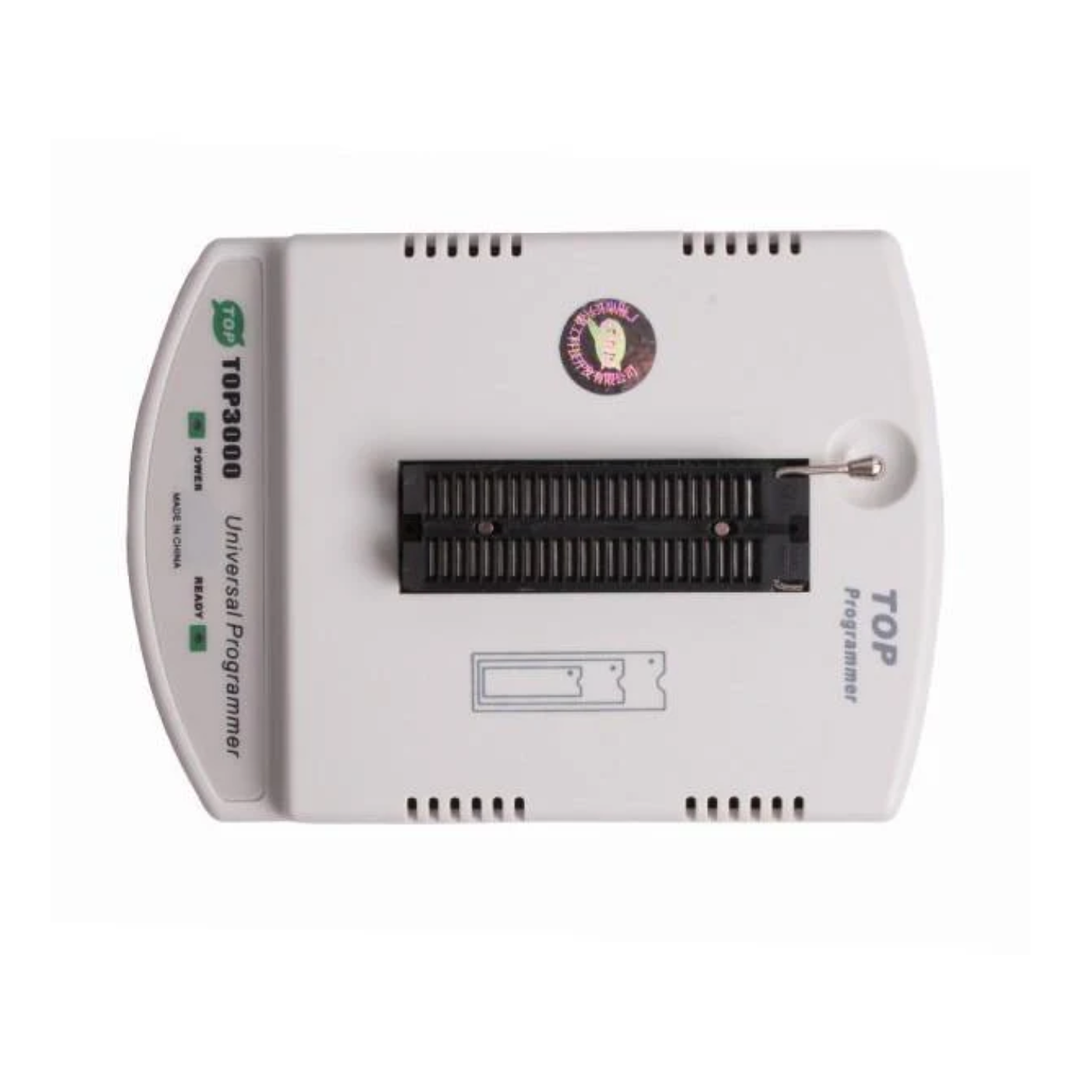

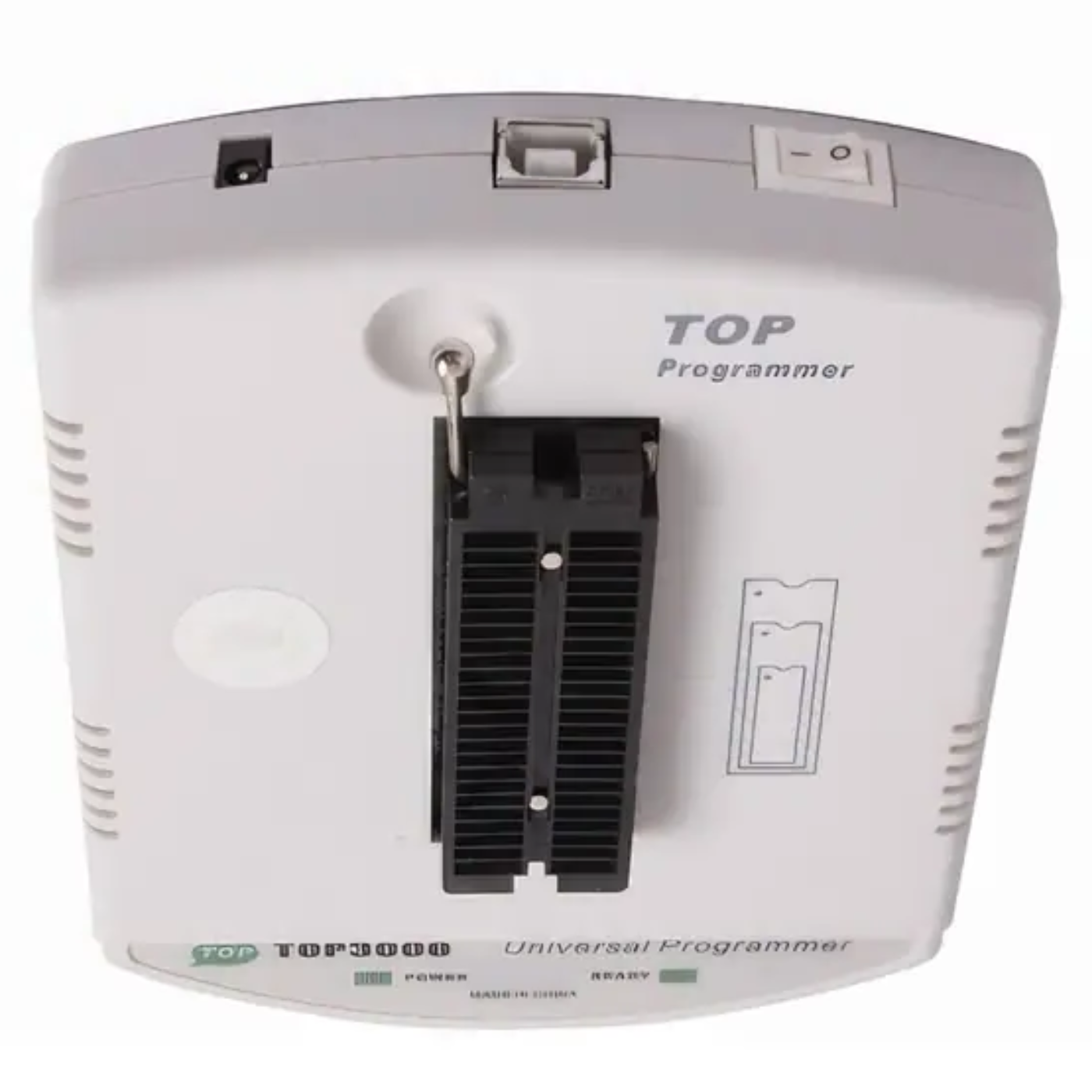

TOP3000 Universal Programmer

TOP3000 Universal Programmer - Robocraze

TOP3000 Universal Programmer

Regular price
Rs. 10,269
Sale price
Rs. 10,269
Regular price
Rs. 13,994
You save Rs. 3,725
27% off
You save Rs. 3,725
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • The Top3000 Universal Programmer is manufactured with a tough plastic casing of the dimensions; 155*110*26mm and weighs only 275g.
  • This Universal Programmer is designed to work well with 2.5~6.5V device.
  • It features a high transmission speed of 12MHz/s via the USB port and 48 pins self lock socket.
  • The Top3000 Universal Programmer is integrated with current protection function that protects your devices like notebooks or desktop computers.

TOP3000 Universal Programmer

The Top3000 Universal Programmer is powered by a USB interface or a 5V power supply. This universal programmer is a Top3000 programmer which is small, lighweight, highly reliable, and consumes low power. The Top3000 Universal Programmer is highly compatible with notebooks and desktop computers.

The TOP3000 programmer supports 2.5 ~ 6.5V device, Powered by your USB interface or the included 5V external power supply. With the fast transmission speed of 12MHz/s via the USB port, Auto detects the device's manufacturer and part number. It is easily compatible with Notebooks and desktop computers.

The in-built connection inspection checks the connection for every pin in the unit. The current protection function protects both the programmer and connected devices, it has 48-pin self-lock sockets, a Compact programmer with a tough plastic casing

Package Includes:

  • 1 x TOP3000 Universal Programmer

Specifications:

Model Top3000 Universal Programmer
Transmission speed 12MHz/s
Power supply input 110 ~ 240VAC
Compatible Operating Systems Windows 2000, Windows 2003, Windows XP, Windows Vista and Windows 7 (32bit)
Material  Tough Plastic
Dimensions 155*110*26mm
Weight  275g

Frequently Asked Questions

1. What is TOP3100 USB Universal Programmer?

  • The TOP3000 programmer features a compact size, low power consumption, and high reliability. This is a general-purpose device specifically designed for programming MCUs and EPROMs. Works with Windows 2000, 2003, XP, Vista, and Windows 7.

2. Which EPROM and  MCU are supported by TOP3100 USB Universal Programmer?

  •  The TOP3100 USB Universal Programmer supports a wide range of EPROM's, EEPROM's, RAM's, PLD's and MPU's from Actrans (EEPROM), AMD (PLD, MPU, EPROM, EEPROM), AMIC (EEPROM), ASD (EEPROM), Atmel (PLD, MPU, EPROM, EEPROM), BDTIC (RAM), Catalyst (EPROM, EEPROM), Crescentec (MPU) Dallas (RAM, MPU, EEPROM) Elan (MPU) EON (EEPROM) EXEL (EEPROM) Fujitsu (EPROM, EEPROM) Future (MPU) Hitachi (EPROM, EEPROM) HMWIN (MPU) Holtek (MPU) Hynix (EEPROM) Hyundai (EPROM) ICT (EPROM) Intel (MPU, RAM, EPROM, EEPROM) ISSI (MPU, EEPROM) Lattice (PLD) LG (MPU) Linksmart (EEPROM) Macronix (EEPROM) Matsushita (EPROM) Megawin (MPU) Micon (MPU) Microchip (MPU, EPROM, EEPROM) Mitsubishi (EPROM, EEPROM) Mosel (MPU, EEPROM) MXIC (EPROM, EEPROM) NEC (EPROM, EEPROM) NS (PLD, EPROM) OKI (EPROM, EEPROM) PDK (MPU) Philips (MPU) PMC (EEPROM) PTC (EEPROM) Ricoh (EPROM) Samsung (MPU, EPROM, EEPROM) SEEQ (EPROM, EEPROM) SGS Thomson (PLD, EPROM, EEPROM) Signetics (EPROM) SMOS (EPROM Sony (EPROM) Sonix (MPU) Spansion (EEPROM) SST (MPU, EEPROM) ST (EPROM, EEPROM) STC (MPU) Stand (RAM) Syncmos (MPU, EEPROM) TI (EPROM, EEPROM) Topro (MPU) Toptek (MPU) Toshiba (EPROM, EEPROM) Versachip (MPU) VLSI (PLD, EPROM, EEPROM) Winbond (MPU, RAM, EEPROM) WSI (EPROM) Xicor (EEPROM) MPU-ATMEL etc.
