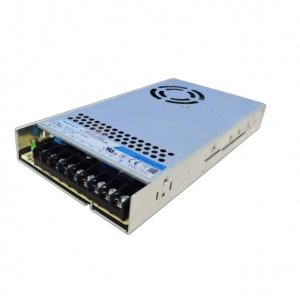

Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Contact form
- Universal input voltage: 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, over-temperature protection
- LED indicator for power on
- Emissions meet CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
The LMF200-23B05 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 5V at 40A, for a total power output of 200W. The input voltage range is 85-305VAC or 120-430VDC. The efficiency is 85%, and the isolation voltage is 4000VAC. The converter is conformal coated for protection against harsh environments.
Features:
- Single output of 5V at 40A
- Total power output of 200W
- Input voltage range of 85-305VAC or 120-430VDC
- Efficiency of 85%
- Isolation voltage of 4000VAC
- Conformal coated for protection against harsh environments
check out : Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LMF200-23B15 AC/DC 200W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
Specifications
| Output voltage | 5V |
| Output current | 40A |
| Total power output | 200W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Efficiency | 85% |
| Isolation voltage | 4000VAC |
