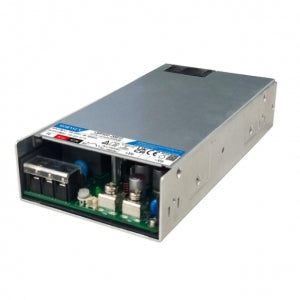

Mornsun LMF500-20B15 AC/DC 500W Enclosed Switching Power Supply

Mornsun LMF500-20B15 AC/DC 500W Enclosed Switching Power Supply

The LMF500-20B15 is a 500W AC/DC enclosed switching power supply from Mornsun. It features a universal AC input of 80-264VAC or 110-370VDC, making it compatible with a wide range of power sources. The power supply also has a DC output of 15V, 33.4A, and an efficiency of up to 92%. This makes it a versatile and efficient option for a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LMF500-20B15 AC/DC 500W Enclosed Switching Power Supply

Specifications
