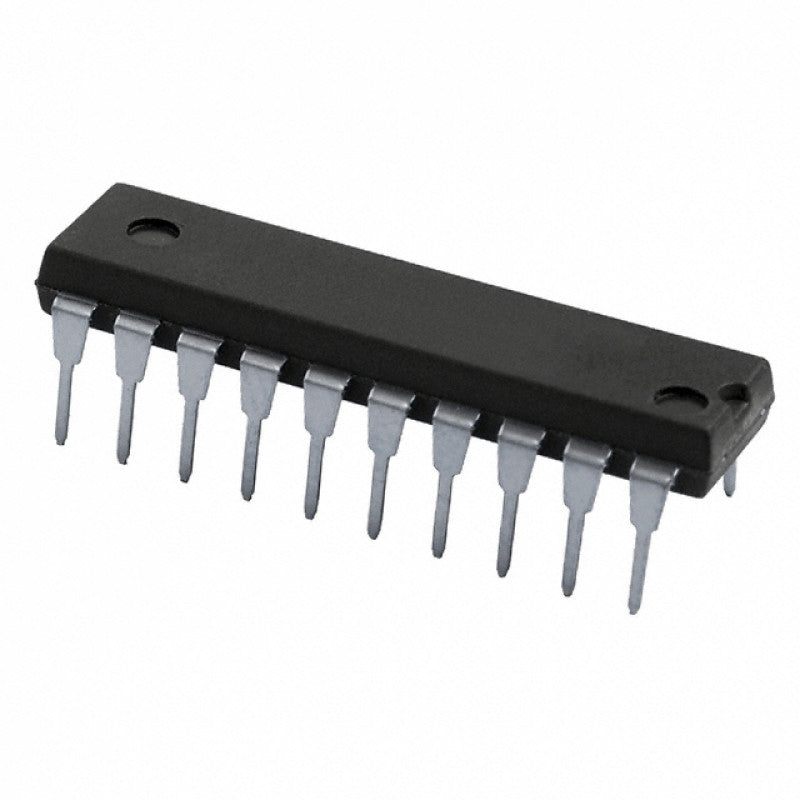

Octal D-Type Flip-Flop with Reset IC - 74HC273

Octal D-Type Flip-Flop with Reset IC - 74HC273

Rs. 30
Rs. 34 Rs. 30
Sale Sold out 12% off Best Price Guaranteed
You save Rs. 4
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
  • IC number: 74HC273
  • Technology: CMOS
  • Logic family: 74 series
  • Number of pins: 20
  • Pin type: through hole
  • High speed
  • Low power consumption
  • TTL compatible
  • High noise immunity

Octal D-Type Flip-Flop with Reset IC - 74HC273

The 74HC series 74HC273 is a 20-Pin Octal D-Type Positive Edge Trigger Flip-Flop with Reset IC having 2V to 6V Operating Voltage range with 5.2mA output current and high noise immunity. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition.

A LOW on MR forces the outputs LOW independently of the clock and data inputs. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages in excess of VCC.

Pinout:

Pinout Of 74HC273 IC

Package Includes:

  • 1 x IC - 74HC273

Specifications:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−20
Input Current 1 uA
Powering Current 80 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 12 ns
Temperature Range -65 °C to +150 °C
Weight  2g
