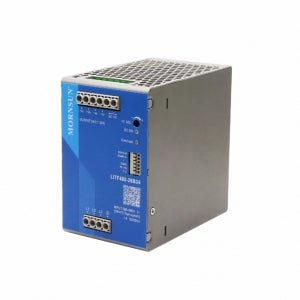

Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply
Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
- Universal input voltage range: 3x320-600VAC or 450-800VDC
- Active Power Factor Correction (PFC) with a power factor greater than 0.95
- Operating ambient temperature range: -30°C to +70°C, 60°C at 100% load without derating
- 150% peak power capability for 4.5 seconds
- Protection features for output short circuit, over-current, over-voltage, and over-temperature
- Supports parallel (2+1 current sharing) and series applications
- Fault alarm function, DC OK signal, protection against backflow voltage
- Double-sided conformal coating for enhanced protection against salt spray
- 485 Communication for remote shutdown (PS ON)
- Designed to meet OVC III safety standard (EN61010)
- Safety compliance with ANSI/ISA 71.04-2013 G3 and IEC/UL62368, EN61010, UL508 standards
Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply
The LITF480-26B24 is a 480W 24V AC/DC power supply from Mornsun. It is a closed-frame, 3-phase power supply with a universal input voltage of 3x320-600VAC or 450-800VDC. The output current is 20A and the efficiency is up to 95%. The power supply has a number of protection features, including overvoltage protection, overload protection, overcurrent protection, and overtemperature protection. It also has a remote sense function and a power factor correction (PFC) function.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply
Specifications:
| Specification | Value |
|---|---|
| Model | LITF480-26B24 |
| Power | 480W |
| Voltage | 24V |
| Input | 3x320-600VAC or 450-800VDC |
| Current | 20A |
| Efficiency | Up to 95% |
