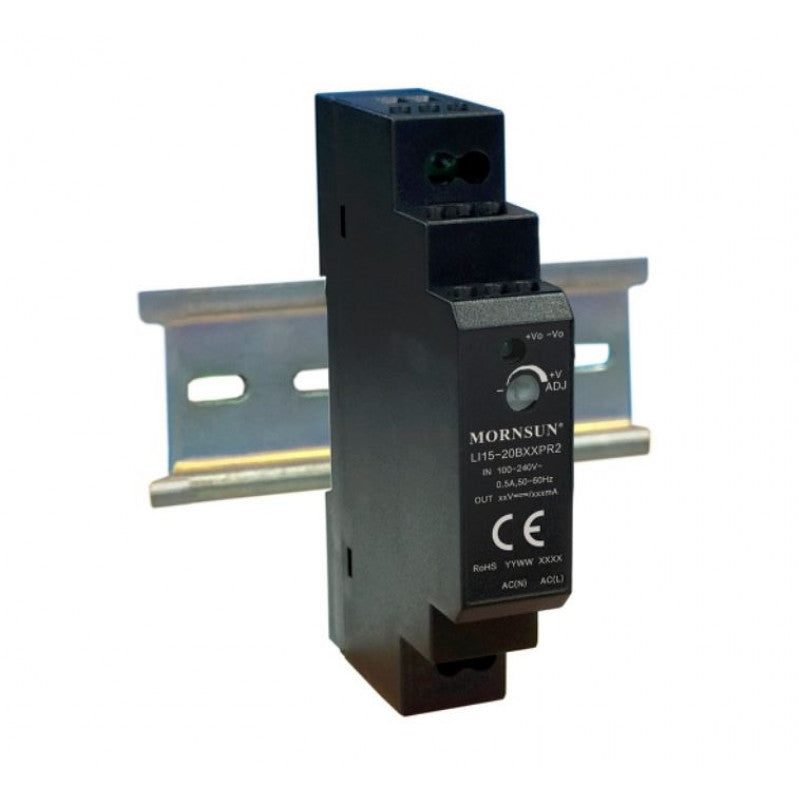

Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply
Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
Contact form
- Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation voltage up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply
The LI15-20B05PR2 is a cost-effective, energy efficient AC-DC power supply from Mornsun. It is compliant with international IEC62368 standards for EMC and safety specifications, and it offers a high level of stability and immunity to noise. The LI15-20B05PR2 is also lightweight and compact, making it ideal for space-saving applications. It is ideal for industrial control equipment, machinery, and other harsh environments.
Features
- Universal input voltage of 85-264VAC or 120-370VDC
- Output voltage of 5V
- Output current of 2.4A
- Efficiency up to 94.5%
- High I/O isolation test voltage up to 3000VAC
- DC OK function
- Active PFC, PF > 0.99
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection, input undervoltage protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design with 48mm width
- Withstand 305VAC input voltage 5S
- Safety according to IEC/UL62368, EN61558
If you are looking for a cost-effective, energy efficient, and reliable AC-DC power supply, the LI15-20B05PR2 is a great option. It is ideal for a variety of applications, including industrial control equipment, machinery, and other harsh environments.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply
Specifications:
| Type | DIN Rail Single Output |
| Output Power | 12W |
| Series | LI15-20B |
| Part Number | LI15-20B05PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 5V |
| Output Current | 2.4A |
